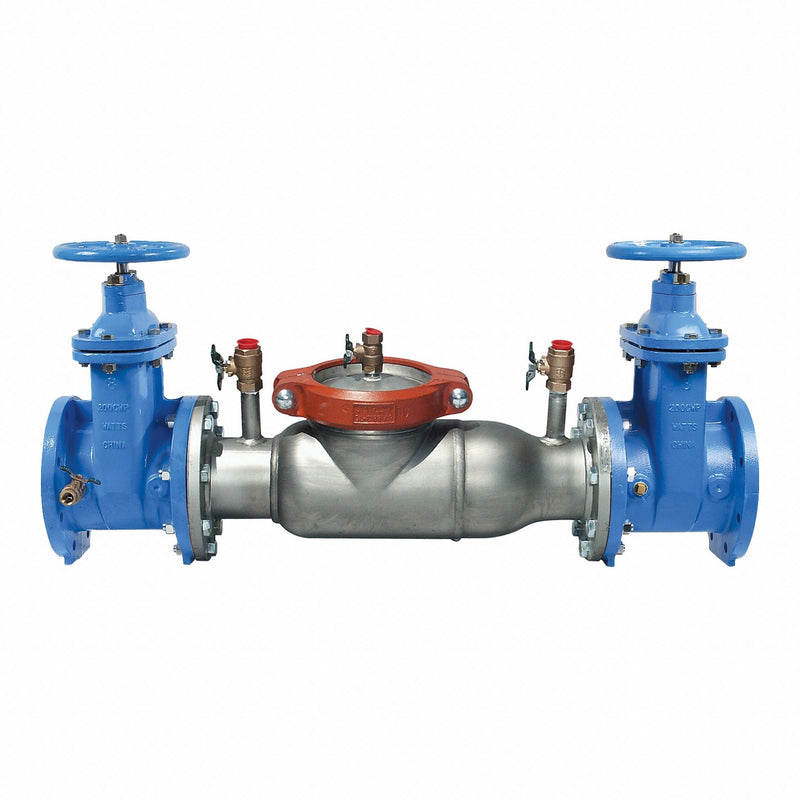

Watts 774-NRS Double Check Valve Assembly, 10 in Pipe, Flange x Flange, Stainless Steel, NRS Gate Shutoff, 175 psi
Original price
$36,375.48
-
Original price
$36,375.48
Original price
$36,375.48
$36,375.48
-
$36,375.48
Current price
$36,375.48
Double Check Valve Assembly, Series Watts 774, Size 10 in., Connection Flanged, Body Material Stainless Steel, Temp. Range 33 to 110 Degrees F, Max. Temp. 110 Degrees F, Max. Pressure 175 psi, Width 16 in., Length 55-1/2 in., Height 31-13/16 in., Features NRS Shutoff, Short Lay Length, Standards AWWA C510-92, CSA B64.5, Compliance ASSE 1015, FM Approved (4 in. to 10 in. OSY Only) UL Classified (OSY Only)
| Body Material | Stainless steel |
| Temp. Range | 33 Degrees to 110 Degrees F |
| Max. Temp. | 110 Degrees F |
| Features | NRS Shutoff, Short Lay Length |
| Series | Watts 774 |
| Standards | ASSE 1015, AWWA C510-92, CSA B64.5 |
| Max. Pressure | 175 psi |
| Compliance | ASSE 1015, FM Approved (4 in to 10 in OSY Only) UL Classified (OSY Only) |
| Connection | Flanged Joint |
| Spring Material | Stainless Steel |
| Flow | 3,500 gpm |
| Operating Temperature - Maximum | 110 Degrees F |
| Manufacturer Warranty | 1 yr |
| Includes Freeze Sensor | No Freeze Sensor |
| Mounting Orientation | Horizontal, Vertical |
| Hazard Protection Level | Low Health Hazard |
| Shut-Off Valve Included | NRS Gate Valve |
| Includes Flow Meter | No Flow Meter |
| Backflow Preventer Type | Double Check Assembly (DC) |
| Connection Type - Side 1 | Flange |
| Check Mechanism Material | Thermoplastic |
| Operating Temperature - Minimum | 33 Degrees F |
| Maximum Pressure - Operating | 175 psi |
| Number of Test Ports | 4 |
| Includes Strainer | No Strainer |
| For Media | Water |
| Connection Type - Side 2 | Flange |
| Valve Series | 774 |
