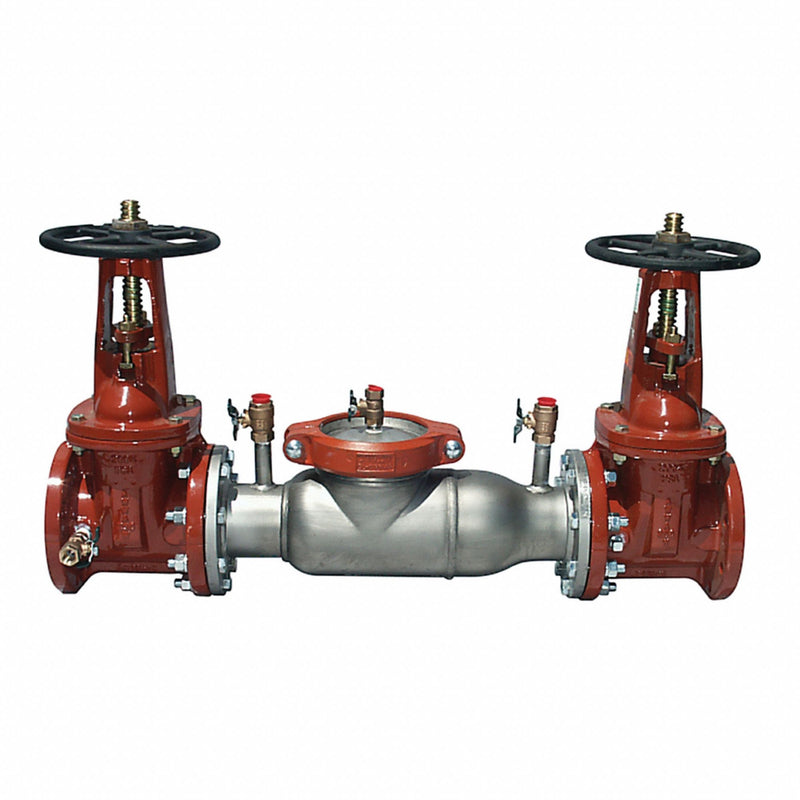

Watts 774-OSY Double Check Valve Assembly, 12 in Pipe, Flange x Flange, Stainless Steel, OSY Gate Shutoff, Short Lay Length, 175 psi
Original price
$55,412.00
-
Original price
$55,412.00
Original price
$55,412.00
$55,412.00
-
$55,412.00
Current price
$55,412.00
Double Check Valve Assembly, Series Watts 774, Size 12 in., Connection Flanged, Body Material Stainless Steel, Temp. Range 33 to 110 Degrees F, Max. Temp. 110 Degrees F, Max. Pressure 175 psi, Width 19 in., Length 57-1/2 in., Height 62-5/8 in., Features OSY Shutoff, Short Lay Length, Standards AWWA C510-92, CSA B64.5, Compliance ASSE 1015, FM Approved (4 in. to 10 in. OSY Only) UL Classified (OSY Only)
| Body Material | Stainless steel |
| Temp. Range | 33 Degrees to 110 Degrees F |
| Connection | Flanged Joint |
| Max. Pressure | 175 psi |
| Features | OSY Shutoff, Short Lay Length |
| Compliance | ASSE 1015, FM Approved (4 in to 10 in OSY Only) UL Classified (OSY Only) |
| Max. Temp. | 110 Degrees F |
| Series | Watts 774 |
| Standards | ASSE 1015, AWWA C510-92, CSA B64.5, cULus Classified, FM |
| Flow | 4,500 gpm |
| Spring Material | Stainless Steel |
| Hazard Protection Level | Low Health Hazard |
| For Media | Water |
| Maximum Pressure - Operating | 175 psi |
| Operating Temperature - Minimum | 33 Degrees F |
| Check Mechanism Material | Thermoplastic |
| Number of Test Ports | 4 |
| Includes Flow Meter | No Flow Meter |
| Connection Type - Side 1 | Flange |
| Connection Type - Side 2 | Flange |
| Includes Strainer | No Strainer |
| Manufacturer Warranty | 1 yr |
| Operating Temperature - Maximum | 110 Degrees F |
| Shut-Off Valve Included | OSY Gate Valve |
| Backflow Preventer Type | Double Check Assembly (DC) |
| Includes Freeze Sensor | No Freeze Sensor |
