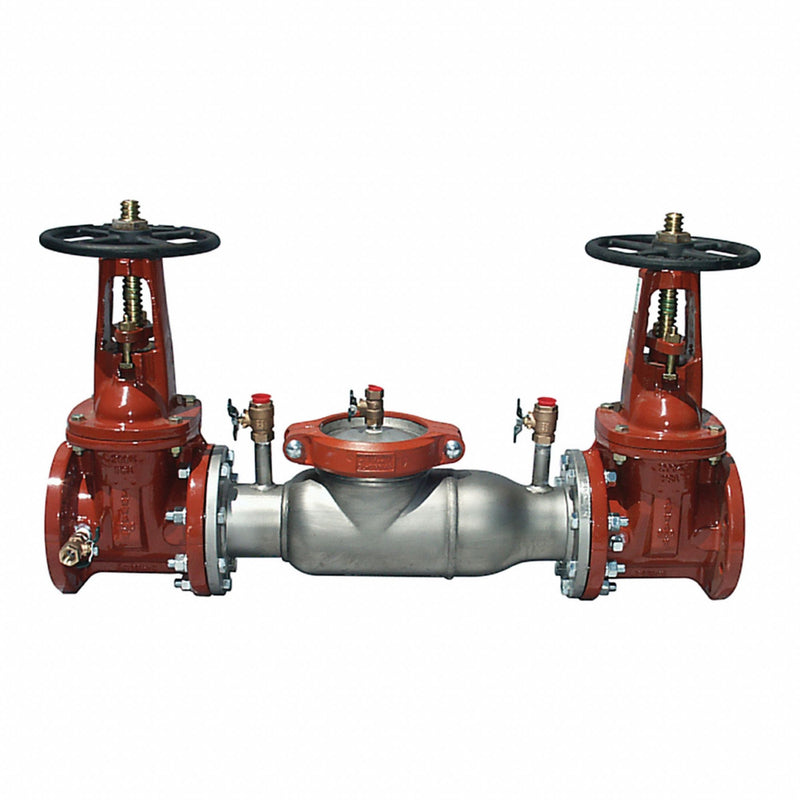

Watts 774-OSY Double Check Valve Assembly, 3 in Pipe, Flange x Flange, Stainless Steel, OSY Gate Shutoff, Short Lay Length, 175 psi
Original price
$8,373.79
-
Original price
$8,373.79
Original price
$8,373.79
$8,373.79
-
$8,373.79
Current price
$8,373.79
Double Check Valve Assembly, Series Watts 774, Size 3 in., Connection Flanged, Body Material Stainless Steel, Temp. Range 33 to 110 Degrees F, Max. Temp. 110 Degrees F, Max. Pressure 175 psi, Width 7-1/2 in., Length 38 in., Height 22-5/8 in., Features OSY Shutoff, Short Lay Length, Standards AWWA C510-92, CSA B64.5, Compliance ASSE 1015, FM Approved (4 in. to 10 in. OSY Only) UL Classified (OSY Only)
| Body Material | Stainless steel |
| Temp. Range | 33 Degrees to 110 Degrees F |
| Compliance | ASSE 1015, FM Approved (4 in to 10 in OSY Only) UL Classified (OSY Only) |
| Standards | ASSE 1015, AWWA C510-92, CSA B64.5, cULus Classified, FM |
| Max. Pressure | 175 psi |
| Max. Temp. | 110 Degrees F |
| Series | Watts 774 |
| Features | OSY Shutoff, Short Lay Length |
| Connection | Flanged Joint |
| Number of Test Ports | 4 |
| Manufacturer Warranty | 1 yr |
| Operating Temperature - Minimum | 33 Degrees F |
| Includes Freeze Sensor | No Freeze Sensor |
| Connection Type - Side 1 | Flange |
| Spring Material | Stainless Steel |
| Check Mechanism Material | Thermoplastic |
| Hazard Protection Level | Low Health Hazard |
| Includes Strainer | No Strainer |
| Shut-Off Valve Included | OSY Gate Valve |
| Connection Type - Side 2 | Flange |
| For Media | Water |
| Operating Temperature - Maximum | 110 Degrees F |
| Mounting Orientation | Horizontal, Vertical |
| Includes Flow Meter | No Flow Meter |
| Backflow Preventer Type | Double Check Assembly (DC) |
| Flow | 600 gpm |
