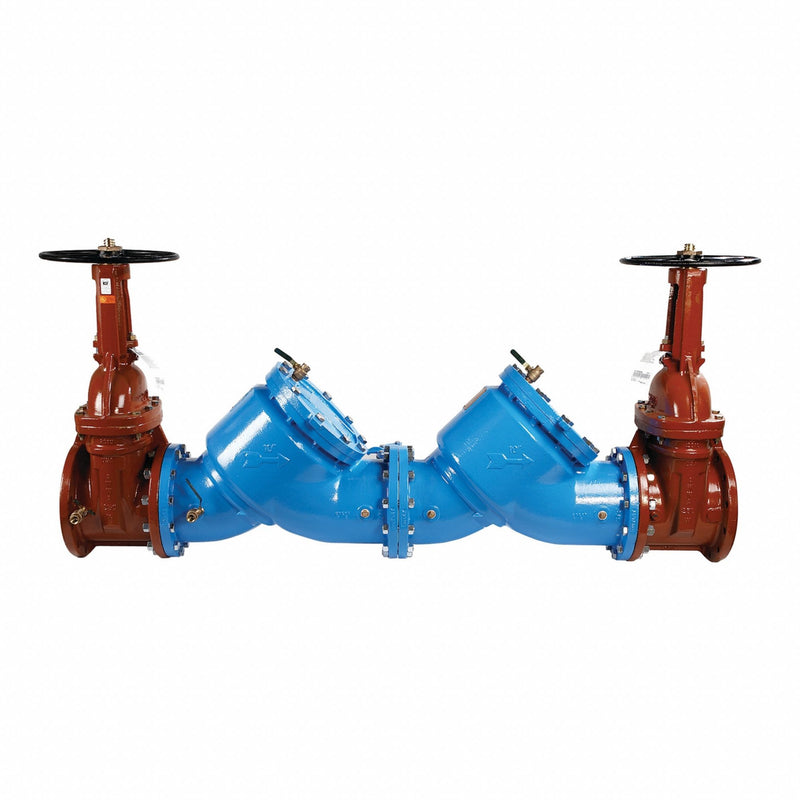

Watts LF709-OSY Double Check Valve Assembly, 10 in Pipe, Flange x Flange, 175 psi, Cast Iron, OSY Gate Shutoff
Original price
$56,744.34
-
Original price
$56,744.34
Original price
$56,744.34
$56,744.34
-
$56,744.34
Current price
$56,744.34
Double Check Valve Assembly, Series Watts 709, Size 10 in., Connection Flanged, Body Material Cast Iron, Temp. Range 33 to 110 Degrees F, Max. Temp. 110 Degrees F, Max. Pressure 175 psi, Width 22-3/4 in., Length 90 in., Height 45-3/4 in., Features OSY Shutoffs, Standards AWWA C510-92, IAPMO PA 31, USC Manual for Cross Connection Control 8th Edition, Compliance ASSE 1015, UPC, CSA B64.5, UL Classified, FM Approved, USC, Lead Free
| Body Material | Cast iron |
| Temp. Range | 33 Degrees to 110 Degrees F |
| Max. Temp. | 110 Degrees F |
| Compliance | ASSE 1015, CSA B64.5, FM Approved, Lead Free, UL Classified, UPC, USC |
| Series | Watts 709 |
| Features | OSY Shutoffs |
| Connection | Flanged Joint |
| Max. Pressure | 175 psi |
| Standards | ASSE 1015, AWWA C510-92, CSA B64.5, cULus Classified, FM, IAPMO PA31, NSF, UPC, USC Manual |
| Shut-Off Valve Included | OSY Gate Valve |
| Maximum Pressure - Operating | 175 psi |
| Connection Type - Side 1 | Flange |
| Connection Type - Side 2 | Flange |
| Includes Freeze Sensor | No Freeze Sensor |
| Operating Temperature - Maximum | 110 Degrees F |
| Manufacturer Warranty | 1 yr |
| Flow | 4,000 gpm |
| For Media | Water |
| Hazard Protection Level | Low Health Hazard |
| Includes Flow Meter | No Flow Meter |
| Mounting Orientation | Horizontal, Vertical |
| Includes Strainer | No Strainer |
| Backflow Preventer Type | Double Check Assembly (DC) |
| Seat Material | Stainless Steel |
| Operating Temperature - Minimum | 33 Degrees F |
| Valve Series | LF709 |
