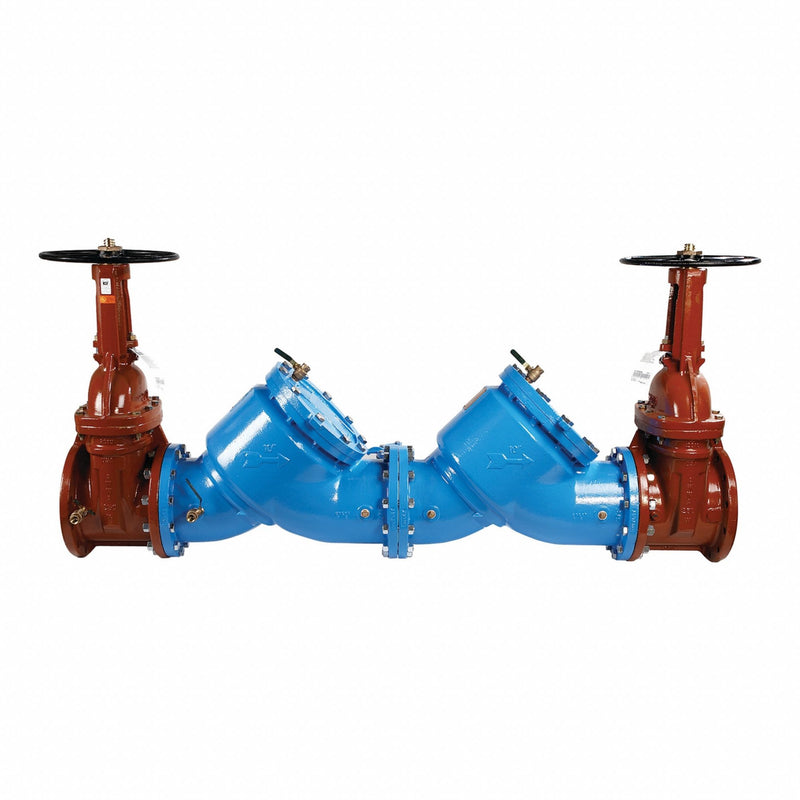

Watts LF709-OSY Double Check Valve Assembly, 8 in Pipe, Flange x Flange, Cast Iron, OSY Gate Shutoff, 175 psi
Original price
$34,531.99
-
Original price
$34,531.99
Original price
$34,531.99
$34,531.99
-
$34,531.99
Current price
$34,531.99
Double Check Valve Assembly, Series Watts 709, Size 8 in., Connection Flanged, Body Material Cast Iron, Temp. Range 33 to 110 Degrees F, Max. Temp. 110 Degrees F, Max. Pressure 175 psi, Width 20-1/4 in., Length 75 in., Height 37-3/4 in., Features OSY Shutoffs, Standards AWWA C510-92, IAPMO PA 31, USC Manual for Cross Connection Control 8th Edition, Compliance ASSE 1015, UPC, CSA B64.5, UL Classified, FM Approved, USC, Lead Free
| Body Material | Cast iron |
| Temp. Range | 33 Degrees to 110 Degrees F |
| Series | Watts 709 |
| Standards | ASSE 1015, AWWA C510-92, CSA B64.5, cULus Classified, FM, IAPMO PA31, NSF, UPC, USC Manual |
| Features | OSY Shutoffs |
| Max. Temp. | 110 Degrees F |
| Max. Pressure | 175 psi |
| Compliance | ASSE 1015, CSA B64.5, FM Approved, Lead Free, UL Classified, UPC, USC |
| Connection | Flanged Joint |
| Manufacturer Warranty | 1 yr |
| Connection Type - Side 1 | Flange |
| Mounting Orientation | Horizontal, Vertical |
| Operating Temperature - Maximum | 110 Degrees F |
| For Media | Water |
| Includes Flow Meter | No Flow Meter |
| Backflow Preventer Type | Double Check Assembly (DC) |
| Seat Material | Stainless Steel |
| Flow | 2,500 gpm |
| Operating Temperature - Minimum | 33 Degrees F |
| Includes Freeze Sensor | No Freeze Sensor |
| Maximum Pressure - Operating | 175 psi |
| Shut-Off Valve Included | OSY Gate Valve |
| Connection Type - Side 2 | Flange |
| Hazard Protection Level | Low Health Hazard |
| Includes Strainer | No Strainer |
| Valve Series | LF709 |
