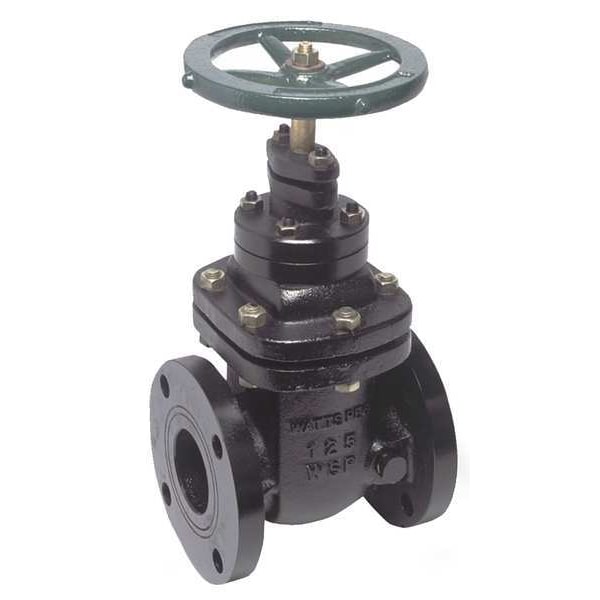

Watts NRS-RW-Gate21/2 Gate Valve, 2 1/2 in Nominal Valve Size, Cast Iron, Non-Rising, Class 200 Flange, Wheel
Original price
$1,535.05
-
Original price
$1,535.05
Original price
$1,535.05
$1,535.05
-
$1,535.05
Current price
$1,535.05
Cast iron non-rising-stem gate valves are vibration-resistant and suitable for high-temperature applications. Non-rising stem valves, also known as insider screw valves, have stems that do not extend when the valve is opened, and are used in areas with limited space.
| For Media | Water |
| Body Material | Cast Iron |
| Nominal Valve Size | 2-1/2 in |
| ANSI Flange Class | Class 200 |
| Connection Type | Flanged |
| Number of Flange Bolt Holes | 4 |
| Max. Pressure (CWP) | 200 psi |
| Operating Temperature | 33 to 140 °F |
| Stem Type | Non-Rising |
| Stem Material | Stainless Steel |
| Wedge Style | Resilient |
| Wedge Material | Cast Iron |
| Handle Type | Wheel |
| Handle Material | Cast Iron |
| Bonnet Material | Cast Iron |
| Bonnet Style | Bolted |
| Overall Length | 7.5 in |
| Standards | ASTM A126 Class B Iron, AWWA 509, FM, MSS-SP-70, UL, ULC |
