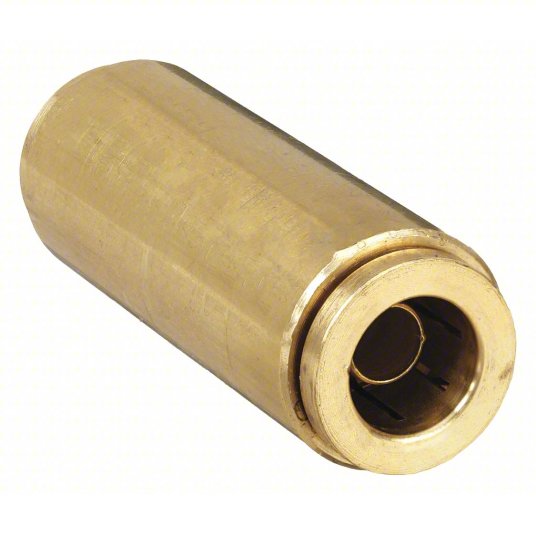

Weatherhead 1862X4 Union Brass, Push-to-Connect x Push-to-Connect, For 1/4 in x 1/4 in Tube OD, 1 5/8 in Overall Lg

Union, Application Air, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side A Tube Outer Diameter 1/4 in, Fitting Side B Tube Outer Diameter 1/4 in, Fitting Material Brass, Color Gold, Includes Pre-Applied Thread Sealant Yes, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 1 5/8 in, Specific Fitting Shape Straight Connector, Standards DOT FMVSS 571.106, SAE J1131

Material	Brass
Connection	Quick Connect
Sub-Category	Unions
Temp. Range	-40 Degrees to 200 Degrees F
Gasket Material	Ethylene Propylene Rubber
Type	Female
Pressure (PSI)	150
Standards	DOT FMVSS 571.106, SAE J1131
For Use With	Push Connect/Air Brake
Application	Air
Color	Gold
Maximum Operating Pressure	150 psi
Fitting Material	Brass
Fitting Side A Connection Type	Push-to-Connect
Includes Pre-Applied Thread Sealant	Yes
Fitting Side B Connection Type	Push-to-Connect
System of Measurement	Imperial
Resistance Properties	Vibration-Resistant
Maximum Operating Temperature	200 Degrees F
Release Ring Material	Ethylene Propylene Rubber
Specific Fitting Shape	Straight Connector
Minimum Operating Temperature	40 Degrees F
