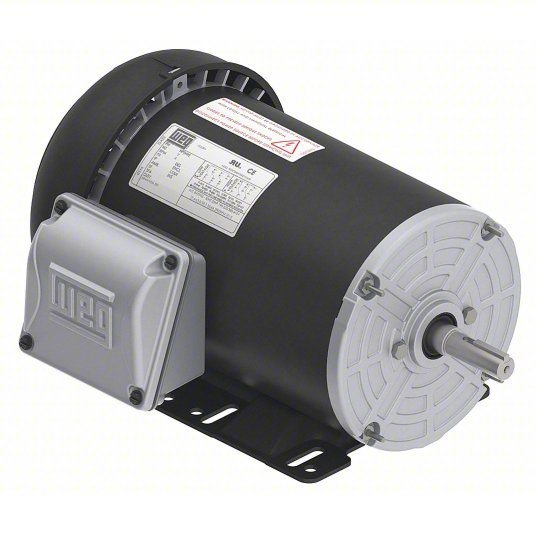

WEG .5036ES3E56-S General Purpose Motor Totally Enclosed Fan-Cooled, Rigid Base Mount, 1/2 HP, 208-230/460V AC, F
Original price
$295.63
-
Original price
$295.63
Original price
$295.63
$295.63
-
$295.63
Current price
$295.63
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Mounting Type | Rigid Base |
| HP | 1/2 |
| RPM Range | 3,001-3,600 |
| Voltage | 208-230/460V AC |
| Frame | 56 |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.15 |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Nameplate RPM | 3,500 |
| Motor Shaft Rotation | CW/CCW |
| Motor Mounting Position | All Angle |
| Motor Frame Material | Steel |
| Motor Shaft Design | Keyed |
| Standards | CSA, UL |
| Motor Bearings | Ball |
| Green Environmental Attribute | Does not Contain Formaldehyde |
| No. of Speeds | 1 |
| Inverter Rated | Yes |
| Phase | Three |
| Full Load Amps | 1.86-1.69/0.843 A |
| Hz | 60 Hz |
| Max. Ambient Temp. | 104 Degrees F |
| Ins. Class | F |
| RPM Group | 3001-3600 |
| Frame Material | Rolled steel |
| Nominal Efficiency | 68 % |
| Duty | Continuous |
| Usable @ 200V | No |
| Duty Cycle | Continuous |
| Full Load Amps @ 50Hz | 1.65/0.88, 1.78/0.890 A |
| Voltage @ 50Hz | 190/380V AC, 220/415V AC |
| HP @ 50Hz | 1/2 |
| Usable @ 208V | Yes |
| Service Factor @ 50Hz | 1.15 |
| RPM @ 50Hz | 2,865 |
| Weight | 19.2 lb |
| Capacitor Required | No |
