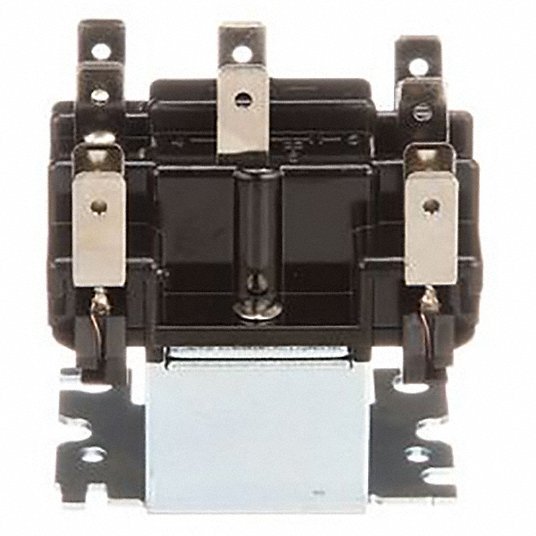

White Rodgers 90-340 Magnetic Relay, Coil Volts 24, Switch Type DPDT
Original price
$12.40
-
Original price
$12.40
Original price
$12.40
$12.40
-
$12.40
Current price
$12.40
Magnetic Relay, Coil Voltage 24V AC, Contact Form DPDT, Current Rating 334 mA, Electrical Connection Quick-Connect, Number of Pins 6, Sealing Semi-Enclosed, Status Indicator No Indicator, Contact Rating (AC) 334 mA @ 125V, Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Universal, Body Depth 2.08 in, Body Height 1.86 in, Body Width 2.11 in, Coil Resistance 17.5 ohm
| Item | Magnetic Relay |
| Switch Type | DPDT |
| Coil Volts | 24 |
| HP | 1/2 hp |
| Full Load Amps @ 120VAC | 12 |
| Agency Compliance | UL |
| Locked Rotor Amps @ 120V | 60 |
| Mounting | Universal |
| Type | AC Switching |
| Locked Rotor Amps @ 240V | 35 |
| Application | Air Conditioning, Heating/Ventilating Control System, Motor Starting, Heating Element Operation and Power Supply Control |
| Full Load Amps @ 277V | 6 |
| Full Load Amps @ 240VAC | 6 |
| Resistive Amps @ 277V | 15 |
| Electrical Connection Type | Tab |
| Standards | CSA File No. LR13360, UL E12139 |
| For Use With | General Purpose Switching, HVAC Equipment, Vending Machines and Appliances |
| Frequency | 50/60 Hz |
| Coil Voltage | 24V AC |
| Electrical Connection | Quick-Connect |
| Mounting Style | Universal |
| Horsepower @ 240V AC | 1/2 hp |
| Power Consumption | 9.5 VA |
| Sealing | Semi-Enclosed |
| Relay Mounting Style | Surface |
| Environmental Protection | Enclosed |
| Electrical Operating Durability | 100,000 |
| Contact Rating (AC) | 334 mA @ 125V |
| Coil Voltage Type | AC |
| Coil Resistance | 17.5 ohm |
| Mechanical Operating Durability | 1,000,000 |
| Horsepower @ 120V AC | 1/2 hp |
| Operating Current | 15 A at 277V AC (Resistive Load) |
| Contact Form | DPDT |
| Input Voltage | 24V AC |
| Minimum Operating Temperature | -40 Degrees F |
| Weight | 6 oz |
| Number of Pins | 6 |
| Compatible with Manufacturer Model Number | 90-112, 90-113, 90-118E, 90-119 |
| Maximum Operating Temperature | 130 Degrees F |
| Socket Code Configurator | Surface / 6 |
| Motor Rated | Yes |
| Current Rating | 334 mA |
| Package Quantity | 1 |
