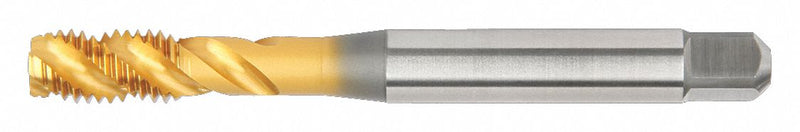

WIDIA GTD VTSFT-TC6049 Spiral Flute Tap, 2"-4.5 UNC, 2B, 5 Flute, Semi-Bottoming Chamfer, High Speed Steel
UPC: | Harmonization / Schedule B : 8207.40.3000
Country of Origin: Japan | Shipping Weight: 5.04 lbs
Original price
$2,075.82
-
Original price
$2,075.82
Original price
$2,075.82
$2,075.82
-
$2,075.82
Current price
$2,075.82
Spiral Flute Tap, 2"-4-1/2, Semi-Bottoming, UNC, 5 Flutes, TiN
| MFR # | VTSFT-TC6049 |
|---|---|
| Zoro # | G7683720 |
| UPC # | - |
| Country of Origin | Japan |
| Tap Thread Size | 2"-4-1/2 |
| Thread Length | 2-3/16" |
| Overall Length | 9-13/16" |
| Tap Dimension Type | Inch |
| Shank Dia. | 1-9/16" |
| Pitch Diameter Limit | 2B |
| Tap Size | 2" |
| 65% Thread Drill Size | 1.8124 in |
| Square Size | 1.2600 in |
| Thread Size | 2"-4.5 |
| 75% Thread Drill Size | 1 25/32 in |
| Shank Length | 4 5/16 in |
| Square Width | 1.26 in |
| Square Length | 1.26 in |
| Shank Diameter | 1 37/64 in |
| Item | Spiral Flute Tap |
| Tap Chamfer | Semi-Bottoming |
| Tap Thread Type | UNC |
| Number of Flutes | 5 |
| Tap Finish | TiN |
| List Number | VT-SFT |
| Number of Pieces | 1 |
| Tap Material | High Speed Steel |
| Standards | DIN 376 |
| Thread Direction | Right Hand |
| Tap Style | Spiral Flute |
| Cutting Direction - Machining | Right Hand |
| Extended Neck | Yes |
| Tap Shank Standard | DIN 376 |
| Secondary Material Application ISO Code | K, M, N |
| Spiral Direction | Right Hand |
| Measurement System | Fractional Inch |
| Primary Material Application | Steel |
| Class of Fit | 2B |
| Helix Angle | 45 Degrees |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel |
| Thread Limit | 2B |
| Threads per Inch | 4 1/2 |
| Thread Standard | UNC |
| Series | VT-SFT |
| Shank Type - Machining | Straight |
| Features | Form C Semi-Bottoming Chamfer, Tension/Compression Holders |
| Primary Material Application ISO Code | P |
| Coolant Fed | Non-Coolant Through |
| Material Grade - Machining | WU41EG |
| Shank Type | Straight |
