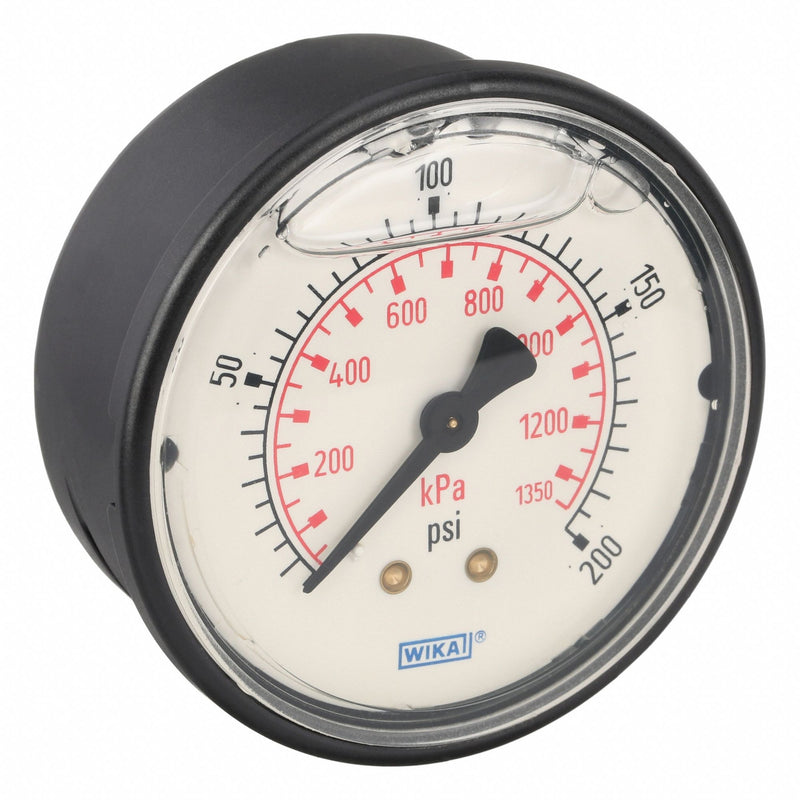

Wika 113.13.25.200.B Commercial Pressure Gauge, 0 psi to 200 psi, 2 1/2 in Dial, 1/4 in NPT Male, Center Back, 4
UPC: | Harmonization / Schedule B : 9026.20.8000
Country of Origin: United States | Shipping Weight: 0.5 lbs
Original price
$56.11
-
Original price
$56.11
Original price
$56.11
$56.11
-
$56.11
Current price
$56.11
Commercial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material ABS, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Black, IP/NEMA Rating IP65, Primary Pressure Range 0 to 200, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge
| Process Connection Size | 1/4 in |
|---|---|
| Dial Size (In.) | 2 1/2 in |
| Manufacturer Warranty Length | 1 yr |
| Case Depth | 29 mm |
| Case Diameter | 62.5 mm |
| Nominal Dial Size | 2 1/2 in |
| Nominal Dial Diameter | 2 1/2 in |
| Accuracy | +/-3-2-3% |
| Process Connection Location | Center Back |
| Process Connection Type | NPT |
| Application | Compressors, Hydraulics, Marine, Pumps |
| Gauge Case Material | ABS |
| Series | 113.13 |
| Lens Material | Plastic |
| Primary Pressure Range | 0 to 200 |
| Primary Scale Units | psi |
| IP/NEMA Rating | IP65 |
| Liquid-Filled Case | Yes |
| Hazardous Location Rating | Not Rated |
| Panel-Mountable | No |
| Blowout Safety Back | No |
| Case Color | Black |
| Calibration Certificate Included | No |
| Gauge Primary Range Smallest Graduation | 50 |
| For Use With | Non Explosive Gas or Liquid That Do Not Crystalize and Corrode Copper Alloy |
| Smallest Graduation | 20 psi |
| Gauge Primary Range Numbered Graduations | 50 |
| Gauge Secondary Range Values | 0 to 10 |
| Gauge Filled With | Glycerin |
| Gauge Application | General-Purpose Case |
| Gauge Special Options | Heavy Duty |
| Characteristics | With Brass Internals |
| Graduations | 20 psi |
| Case Material | ABS |
| Socket Material | Brass |
| Connection Type | MNPT |
| Standards | EN 837-1 |
| Compatible Process Media | Liquids and Gases |
| Non-Sparking | No |
| Includes Calibration Certificate | No |
| Vibration Resistance | Liquid-Filled |
| Pointer Material | ABS |
| Dial Color | White |
| Scale Type | Dual |
| Includes Vent Plug | Yes |
| Secondary Scale Units | kPa |
| Primary Scale Minor Graduations | 50 |
| Case Construction | Welded Joint |
| Process Connection Gender | Male |
| Ambient Operating Temperature Range | -4 Degrees to 140 Degrees F (-20 Degrees to 60 Degrees C) |
| Pointer Color | Black |
| Primary Scale Numeric Increments | 50 |
| Gauge Case Liquid | Glycerin |
| Field Fillable | No |
| Sensor Type | Bourdon Tube |
| Sensor Material | Bronze |
| Dial Face Material | ABS |
| Pressure Gauge Type | Commercial Pressure Gauge |
| Pressure Range Type | Pressure |
| Freeze Resistant Movement | No |
| Accuracy Grade | ASME B40.100 Grade B |
| Removable Bezel | No |
| Includes Mounting Hardware | No |
| Accuracy Scale | Mid-Scale |
| Secondary Pressure Range | 0 to 1,400 kPa |
| Cleaned for Oxygen Service | No |
| Dry Dampening Feature | None |
| Maximum Pressure | 200 |
| Operating Temperature Range | -4 Degrees to 140 Degrees F |
| Secondary Scale Pressure Measurement - Minimum | 0 kPa |
| Compatible with Series | Universal |
| Process Media Temperature - Minimum | -40 Degrees F |
| Operating Temperature - Maximum | 140 Degrees F |
| Operating Temperature - Minimum | -4 Degrees F |
| Compatible with Brand | WIKA |
| NEMA Enclosure Rating | 4 |
| Secondary Scale Pressure Measurement - Maximum | 1,400 kPa |
| IP Rating | IP65 |
| Case Liquid | Glycerin |
| Primary Scale Pressure Measurement - Maximum | 200 psi |
| Primary Scale Pressure Measurement - Minimum | 0 psi |
| Process Media Temperature - Maximum | 140 Degrees F |
| Country of Origin | United States |
