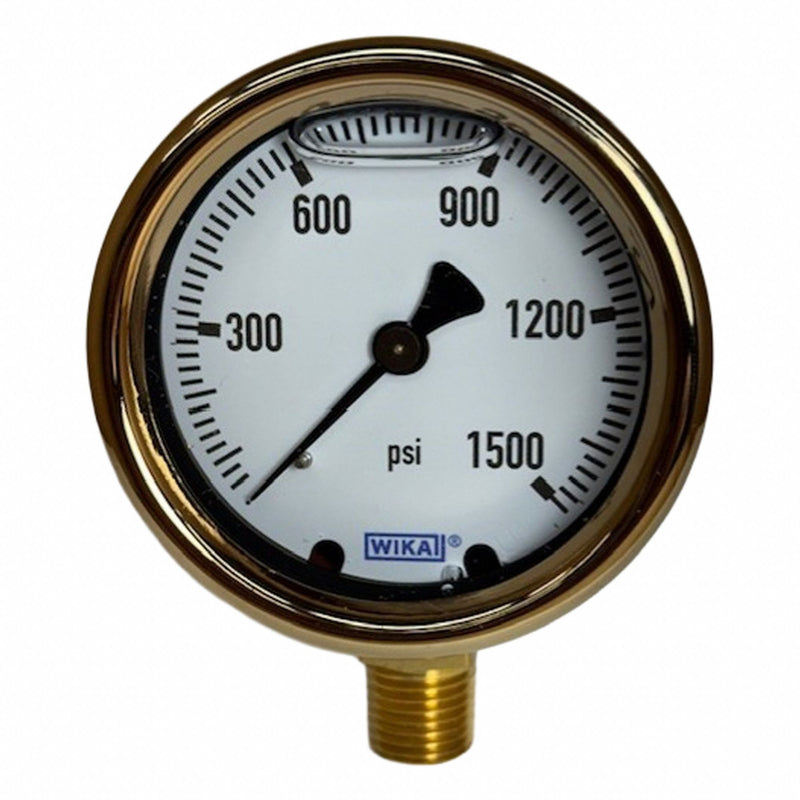

Wika 9310789 Pressure Gauge, 0 psi to 1,500 psi, 2 1/2 in Dial, 1/4 in NPT Male, Bottom, ±2-1-2% Accuracy
UPC: | Harmonization / Schedule B : 9026.20.8000
Country of Origin: United States | Shipping Weight: 0.78 lbs
Original price
$254.46
-
Original price
$254.46
Original price
$254.46
$254.46
-
$254.46
Current price
$254.46
Pressure Gauge, Accuracy +/-2-1-2 Percent, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Gold, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge, Liquid-Filled Case Yes, Panel-Mountable No, Socket Material Copper Alloy, Sensor Material Copper Alloy, Accuracy Grade ASME B40.100, Series 213.40
| Process Connection Size | 1/4 in |
|---|---|
| Nominal Dial Diameter | 2 1/2 in |
| Operating Temperature - Minimum | -4 Degrees F |
| Includes Calibration Certificate | NIST with Data |
| Series | 213.40 |
| Accuracy Grade | ASME B40.100 |
| Compatible with Brand | WIKA |
| Liquid-Filled Case | Yes |
| Primary Scale Pressure Measurement - Minimum | 0 psi |
| IP Rating | IP65 |
| Process Connection Gender | Male |
| Accuracy | +/-2-1-2% |
| NEMA Enclosure Rating | 4X |
| Lens Material | Acrylic |
| Pressure Gauge Type | Commercial Pressure Gauge |
| Primary Scale Pressure Measurement - Maximum | 1,500 psi |
| Case Finish | Painted |
| Process Media Temperature - Maximum | 140 Degrees F |
| Compatible with Series | 213.40 |
| Case Color | Gold |
| Process Connection Location | Bottom |
| Socket Material | Copper Alloy |
| Standards | ASME B40.100 |
| Primary Scale Units | psi |
| Process Media Temperature - Minimum | -4 Degrees F |
| Scale Type | Single |
| Pointer Color | Black |
| Cleaned for Oxygen Service | No |
| Process Connection Type | NPT |
| Case Material | Forged Brass |
| Pressure Range Type | Pressure |
| Operating Temperature - Maximum | 140 Degrees F |
| Panel-Mountable | No |
| Field Fillable | No |
| Case Liquid | Glycerine |
| Sensor Material | Copper Alloy |
| Country of Origin | United States |
