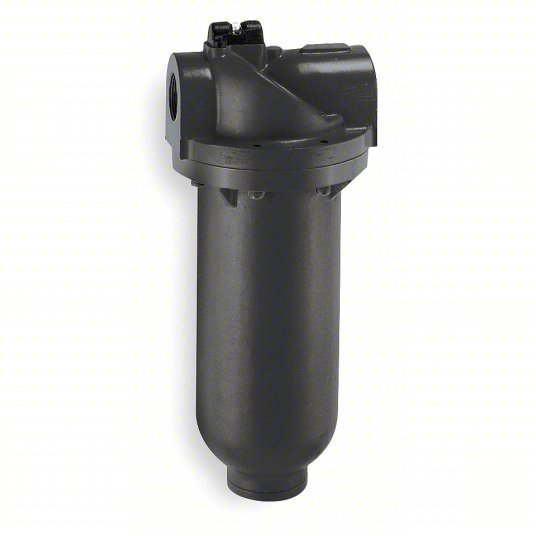

Wilkerson F35-0B-000 Compressed Air Filter Particulate, 1 1/2 in NPT, 5 micron, 1,280 cfm, Metal Bowl, F35
Original price
$751.69
-
Original price
$751.69
Original price
$751.69
$751.69
-
$751.69
Current price
$751.69
Compressed Air Filter, Filter Type Particulate, Air Inlet Size 1 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 1,280 cfm, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 150 Degrees F, Overall Width 7 3/4 in, Overall Height 19 1/16 in, Drain Included Yes, Filter Bowl Material Aluminum, Drain Type Manual, Series F35, Air Outlet Size 1 1/2 in, Air Outlet Type NPT, Body Material Aluminum, Filter Bowl Capacity 12.5 oz, Filter Element Material Polyethylene, Filter Rating 5 micron
| Max. Incoming Pressure - Air Treatment | 150 psi |
| Filter Rating | 5 micron |
| Max. Flow | 1050 cfm |
| Max. Pressure | 150 psi |
| Max. Flow - Air Treatment | 1,050 cfm |
| Filter Rating - Air Treatment | 5 micron |
| Bowl Material - Air Treatment | Metal |
| Max. Temp. | 150 Degrees F |
| Bowl Material | Metal |
| Item | Compressed Air Filter |
| Drain Type | Manual |
| Type | General Purpose |
| Weight | 19.3 lb |
| Maximum Operating Pressure | 150 psi |
| Number of Air Outlets | 1 |
| Drain Included | Yes |
| Filter Type | Particulate |
| Filter Bowl Material | Metal |
| Body Material | Aluminum |
| Maximum Flow Rate | 1,280 cfm |
| Minimum Operating Temperature | 32 Degrees F |
| Number of Air Inlets | 1 |
| ISO Class | 3 |
| Filter Bowl Capacity | 12.5 oz |
| Includes | 1/2 in NPT BSPP-G Drain Plate |
| For Substance Type | Water, Particulate Contamination |
| Series | F35 |
| Air Inlet Type | NPT |
| Seal Material | Fluorocarbon |
| Air Outlet Type | NPT |
| For Fluid Type | Water |
| Filter Element Material | Polyethylene |
| System Location | Air Line |
| Maximum Operating Temperature | 150 Degrees F |
| Pressure Drop | 5 psid |
| Gauge Included | No |
