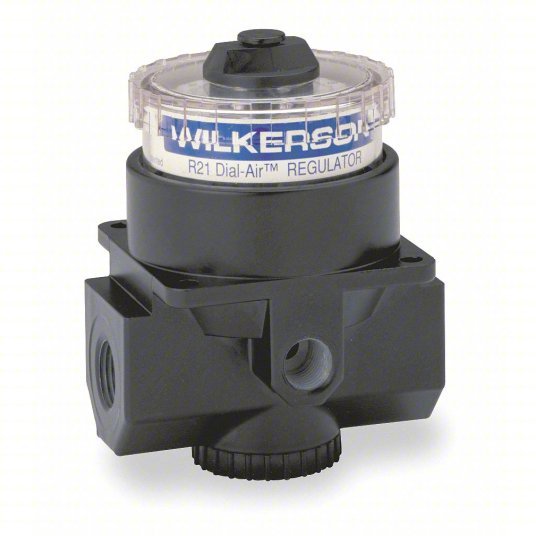

Wilkerson R21-04-000 Compressed Air Regulator Zinc, 1/2 in NPT, 195 cfm, 300 psi Max Op Pressure, Nonrising

Compressed Air Regulator, Air Inlet Size 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 195 cfm, Maximum Operating Pressure 300 psi, Maximum Operating Temperature 150 Degrees F, Pressure Gauge Included No, Adjustment Mechanism Nonrising, Overall Width 2 3/16 in, System Location Air Line, Series R21, Air Inlet Gender Female, Air Outlet Gender Female, Air Outlet Size 1/2 in, Air Outlet Type NPT, Body Material Zinc, For Fluid Type Air, For Substance Type Air

Max. Inlet Pressure - Regulators	300 psi
Adjustment Range - Regulators	0 to 160 psi
Max. Temp. - Regulators	150 Degrees F
Max. Temp. (Regulators)	150 Degrees F
Adjustment Knob	Nonrising Dial
Gauge Port	1/4 in NPT
Compressed Air Regulator Product Grouping	General Purpose Air Regulator
Max. Flow (Regulators)	195 cfm
Max. Inlet Pressure (Regulators)	300 psi
Adjustment Range (Regulators)	0 to 160 psi
Valve Design	Balanced
Max. Flow - Regulators	195 cfm
Body Material	Zinc
Series	R21
For Fluid Type	Air
Regulator Type	Relieving
Seal Material	Nitrile
Air Inlet Gender	Female
Regulator Body Material	Aluminum or Zinc
Air Inlet Type	NPT
Maximum Flow Rate	195 cfm
Minimum Operating Temperature	32 Degrees F
Air Outlet Type	NPT
Pressure Gauge Port Type	NPT
Maximum Operating Temperature	150 Degrees F
Weight	2.3 lb
System Location	Air Line
For Substance Type	Air
Number of Air Outlets	0.5
Maximum Operating Pressure	300 psi
Air Outlet Gender	Female
Pressure Gauge Included	No
Number of Air Inlets	0.5
Adjustment Mechanism	Nonrising
Type	Modular
