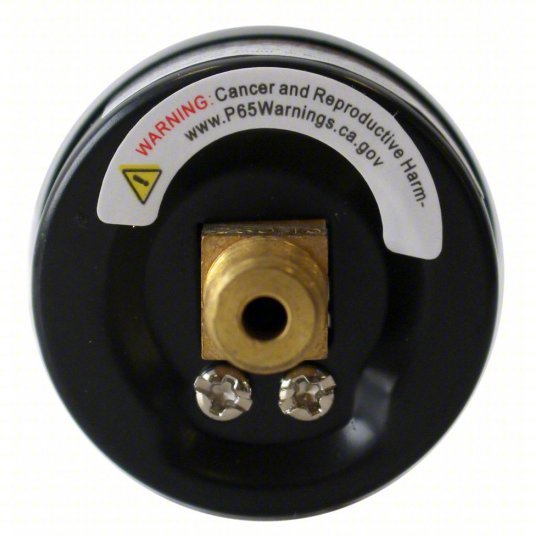

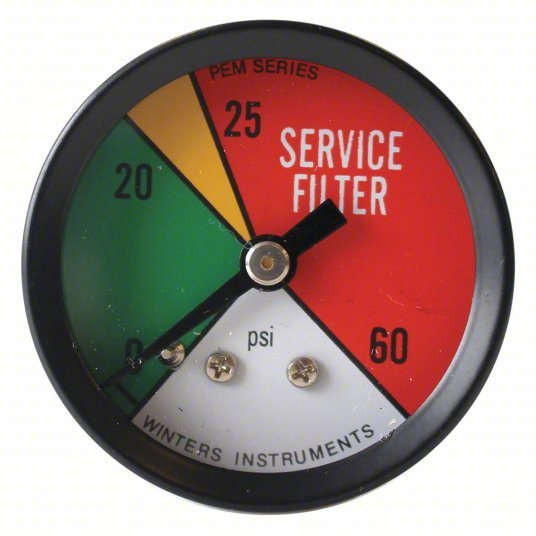

Winters PEM1401-CD Pressure Gauge, Green/Yellow/Red, 0 to 60 psi, 1 1/2 in Dial, 1/8 in NPT Male
Original price
$7.33
-
Original price
$7.33
Original price
$7.33
$7.33
-
$7.33
Current price
$7.33
Commercial Pressure Gauge, Nominal Dial Size 1 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/8 in, Field Fillable No, Process Connection Location Center Back, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 60, Dry Dampening Feature None, Vibration Resistance None, Dial Color Green/Yellow/Red, Pressure Gauge Type Commercial Pressure Gauge
| Connection Location | Center Back |
| Item | Commercial Pressure Gauge |
| For Use With | Media Compatible with Bronze |
| Range | 0 to 60 psi |
| Accuracy | +/-3-2-3% |
| Application | Air Compressors, HVAC/R, Hydraulics, OEM Applications, Plumbing, Pneumatics, Water Pressure Testing |
| Gauge Primary Range Values | 0 to 60 |
| Gauge Primary Range Units | psi |
| Gauge Connection Type | MNPT |
| Case Color | Black |
| Gauge Sensor Material | Brass |
| Gauge Case Material | Steel |
| Gauge Secondary Range Values | 0 to 410 |
| Liquid Filled | No |
| Socket Material | Brass |
| Features | Green, Yellow, Red, psi Zones |
| Calibration Certificate Included | No |
| Pressure Range | 0 to 60 psi |
| Gauge Primary Range Smallest Graduation | 5/50 |
| Standards | ANSI/ASME, CRN |
| Gauge Primary Range Numbered Graduations | 10/100 |
| Gauge Case Color | Black |
| Smallest Graduation | 1 psi/10 kPa |
| Gauge Secondary Range Units | kPa |
| Process Connection | 1/8 in NPT Male |
| Case Material | Steel |
| Gauge Accuracy | +/-3-2-3% |
| Gauge Connection Location | Center Back |
| Series | PEM |
| Gauge Lens Material | Acrylic |
| Gauge Socket Material | Brass |
| Operating Temp. Range | -40 Degrees to 150 Degrees F |
| Includes Mounting Hardware | No |
| Pressure Range Type | Pressure |
| Secondary Pressure Range | 0 to 410 |
| Over-Pressure Limit | 25% of Full Scale |
| Primary Units | psi |
| Case Finish | Painted |
| Liquid-Filled Case | No |
| Lens Material | Acrylic |
| Primary Pressure Range | 0 to 60 |
| Compatible Process Media | Non-Clogging, Non-Corroding |
| IP/NEMA Rating | IP52 |
| Sensor Type | Bourdon Tube |
| Lens Material - Gauge | Plastic |
| Includes Calibration Certificate | No |
| Gauge Accuracy Grade | Grade B - Commercial |
| Primary Scale Units | psi |
| Case Construction | Welded Joint |
| Gauge Case Liquid | None |
| Sensor Material | Phosphor Bronze |
| Removable Bezel | No |
| Bezel Material | Steel |
| Accuracy Scale | Mid-Scale |
| Vibration Resistance | None |
| Primary Range | 0 to 60 |
| Includes Vent Plug | No |
| Field Fillable | No |
| Dial Color | Green/Yellow/Red |
| Dry Dampening Feature | None |
| Panel-Mountable | No |
| Process Temperature Range | -40 Degrees to 150 Degrees F |
| Hazardous Location Rating | Not Rated |
| Secondary Scale Units | kPa |
| Cleaned for Oxygen Service | No |
| Pointer Material | Aluminum |
| Non-Sparking | No |
| Process Connection Type | NPT |
| Pressure Gauge Type | Commercial Pressure Gauge |
| Process Connection Gender | Male |
| Ambient Operating Temperature Range | -40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C |
| Freeze Resistant Movement | No |
| Process Connection Location | Center Back |
| Pointer Color | Black |
| Accuracy Grade | ASME B40.100 Grade B |
| (Hidden) Merchandised Type | Commercial Pressure Gauge x Green/Yellow/Red x PEM |
| Compressed Gas Pressure Gauge Type | Indicating Dial Pressure Gauge |
| Scale Type | Dual |
| Blowout Safety Back | No |
| Dial Face Material | Aluminum |
| Movement Material | Brass |
| Gauge Wetted Parts | Brass / Bronze |
