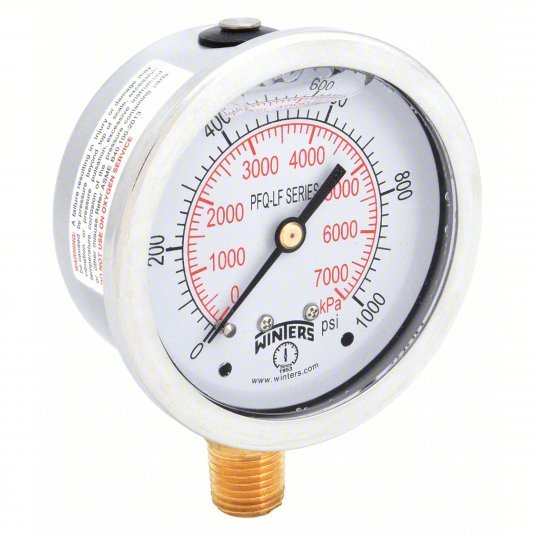

Winters PFQ809LF Lead-Free Pressure Gauge Liquid-Filled, 0 to 1,000 psi, 2 1/2 in Dial, 1/4 in NPT Male
Original price
$37.51
-
Original price
$37.51
Original price
$37.51
$37.51
-
$37.51
Current price
$37.51
Gauge,Pressure,2-1/2 in. These dial pressure gauges are intended for harsh environments and high-vibration applications such as pumps that will be in contact with drinking water.
| Connection Location | Bottom |
| For Use With | Ideal for Plumbing, Heating, Air Conditioning, Pumps, Compressors, Pneumatic Equipment |
| Gauge Application | Ideal for Pumps, Compressors, Hydraulic Presses, Machinery, Pneumatic Equipment and Motors in Harsh Environments |
| Range | 0 to 1000 psi/kPa |
| Accuracy | +/-1.5% |
| Material | AISI 304 Stainless Steel |
| Application | Compressors, Hydraulics, Machinery, Motors, Pneumatics, Pumps |
| Gauge Primary Range Values | 0 to 1000 |
| Gauge Primary Range Units | psi |
| Gauge Connection Type | MNPT |
| Basic Gauge Case Material | Stainless Steel |
| Case Color | Metallic |
| Characteristics | Crimp-On Bezel, CRN Registered, Pulsation Resistant, Restricted Orifice |
| Liquid Filled | Yes |
| Gauge Filled With | Glycerin |
| Required Gauge Adapter | No |
| Calibration Certificate Included | No |
| Gauge Accuracy | +/-1.50% |
| Gauge Panel Mountable | No |
| Gauge Sensor Material | Lead Free Phosphor Bronze |
| Series | PFQ-LF |
| Basic Gauge Lens Material | Plastic |
| Gauge Case Material | 304 Stainless Steel |
| Basic Gauge Wetted Parts | Brass / Bronze |
| Gauge Case Color | Stainless Steel |
| Pressure and Vacuum Gauge Type | Pressure Gauge |
| Basic Gauge Socket Material | Brass |
| Basic Gauge Sensor Material | Bronze |
| Gauge Special Options | Restricted Orifice |
| Gauge Lens Material | Polycarbonate |
| Gauge Connection Location | Bottom |
| Operating Temp. Range | -4 Degrees to 150 Degrees F |
| Gauge Socket Material | Brass |
| Max. Pressure (PSI) | 1000 |
| Socket Material | Lead Free Brass |
| NSF Certified | Yes |
| Standards | ASME, CRN |
| Dry Dampening Feature | None |
| Pressure Gauge Type | Lead-Free Pressure Gauge |
| Cleaned for Oxygen Service | No |
| Dial Color | White |
| Panel-Mountable | No |
| Non-Sparking | No |
| Over-Pressure Limit | 25% |
| Hazardous Location Rating | Not Rated |
| Sensor Type | Bourdon Tube |
| Pressure Range Type | Pressure |
| Ambient Operating Temperature Range | -4 Degrees to 150 Degrees F (-20 Degrees to 65 Degrees C) |
| Includes Mounting Hardware | No |
| Vibration Resistance | Liquid-Filled |
| Bezel Material | 304 Stainless Steel |
| Freeze Resistant Movement | No |
| Liquid-Filled Case | Yes |
| Scale Type | Dual |
| Lens Material | Plastic |
| Process Connection Gender | Male |
| Accuracy Scale | Full Scale |
| Compatible Process Media | Air, Water |
| Process Connection Type | NPT |
| Bezel Mounting Type | Crimped |
| Case Construction | Welded Joint |
| Secondary Pressure Range | 0 to 7,000 |
| Primary Scale Units | psi |
| Sensor Material | Phosphor Bronze |
| IP/NEMA Rating | IP65 |
| Blowout Safety Back | No |
| Secondary Scale Units | kPa |
| Field Fillable | No |
| Bezel Gasket Material | Silicone |
| Pointer Material | Aluminum |
| Movement Material | Stainless Steel |
| Removable Bezel | Yes |
| Dial Face Material | Aluminum |
| Includes Calibration Certificate | No |
| Pointer Color | Black |
| Process Connection Location | Bottom |
| Primary Pressure Range | 0 to 1,000 |
| Includes Vent Plug | Yes |
| Gauge Case Liquid | Glycerin |
| Process Temperature Range | -4 Degrees to 150 Degrees F |
| Connection Size | 1/4 in NPT |
| Dial Size (In.) | 2-1/2 |
| Gauge Connection Size | 1/4 in |
| Gauge Nominal Dial Size | 2 1/2 in |
| Manufacturers Warranty Length | 5 yr |
| Process Connection Size | 1/4 in |
| Case Diameter | 67 1/10 mm |
| Case Depth | 33 mm |
| Nominal Dial Size | 2 1/2 in |
