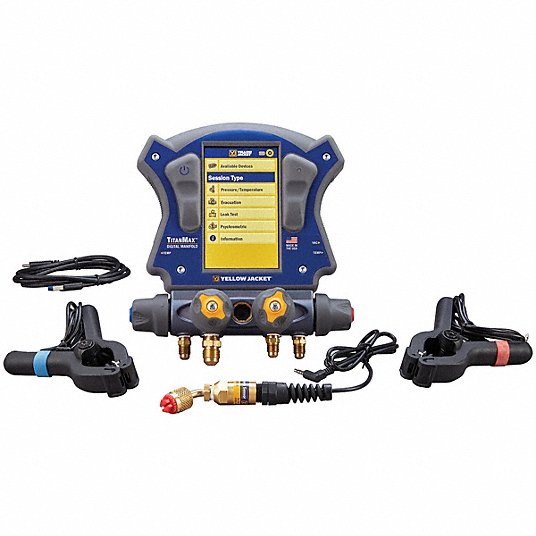

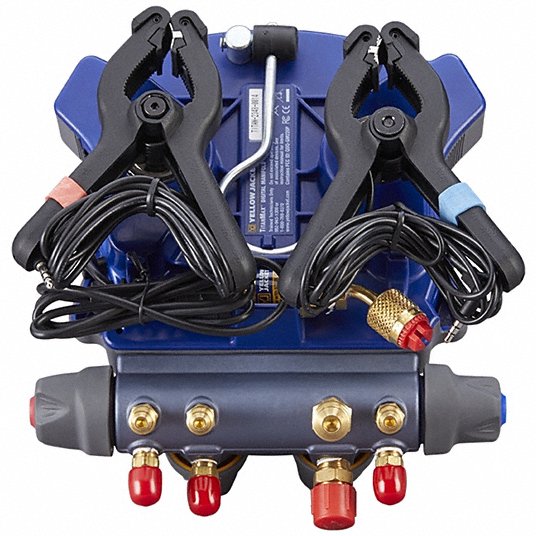

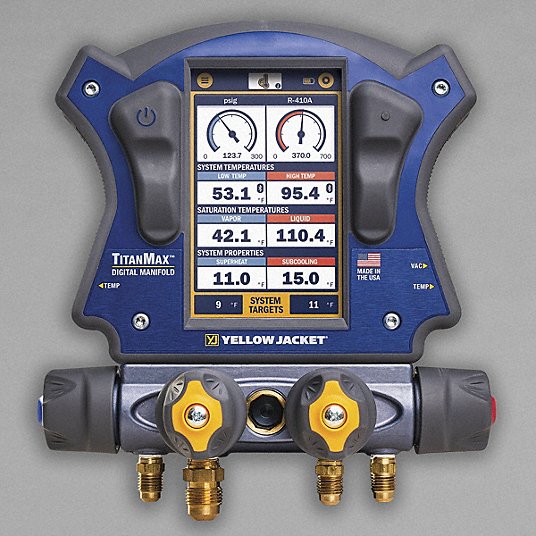

Yellow Jacket 40881 Manifold Gauge 4 Valves, Series TITANMAX™, YJACK VIEW®
Original price
$1,172.59
-
Original price
$1,172.59
Original price
$1,172.59
$1,172.59
-
$1,172.59
Current price
$1,172.59
Manifold Gauge, Number of Valves 4, Not Applicable, Includes (2) Titan Clamp Probes, Hoses, Vacuum Gauge
| Product Type | Manifold Gauge Set |
| Series | TITANMAX(TM) |
| Number of Valves | 4 |
| Includes | (2) Titan Clamp Probes, Hoses, Vacuum Gauge |
| Includes Batteries | Batteries Included |
| Battery Type | Lithium Ion |
| Power Source | Battery |
| Automatic Shut-Off Time | 3.5 hr |
| A2L Compatibility | A2L Compatible |
| Calibration Certificate Type | Not Certified |
| Accuracy | +/-1% |
| Adjustment Method | Knob |
| Response Time | Adjustable |
| Display Type | Digital |
| Display Illumination | Backlit |
| Display Location | App-Based |
| Gauge Type | High Side/Low Side |
| Pressure Units Measured | bar, Pa, psi, psig |
| Temperature Units Measured | Degrees F |
| Pressure Resolution | 0.1 psi, 1 kPa, 0.1 bar |
| Temperature Resolution | 0.1 Degrees F |
| Low Side Display Pressure - Minimum | 0 psi |
| Low Side Display Pressure - Maximum | 740 psi |
| High Side Display Pressure - Minimum | 0 psi |
| High Side Display Pressure - Maximum | 740 psi |
| Operating Temperature - Minimum | -4 Degrees F |
| Operating Temperature - Maximum | 140 Degrees F |
| IP Rating | IP52 |
| Body Material | Plastic |
| Manifold Port Connection Type | SAE |
| Manifold Port Connection Gender | Male |
| Manifold Port Connection Thread Direction | Right-Hand |
| Hose Connection Thread Direction | Right-Hand |
| Vacuum Port Connection Type | SAE |
| Vacuum Port Connection Gender | Male |
| Vacuum Port Connection Thread Direction | Right-Hand |
| Includes Vacuum Port | Vacuum Port Included |
| Includes Sightglass | Sightglass Included |
| App Compatibility | YJACK VIEW(R) |
| For Operating System | Android(TM), iOS(R) |
| Warranty | 2 yr |
| For Refrigerant Type | R-11, R-113, R-114, R-115, R-116, R-12, R-123, R-1233ZD, R-1234YF, R-1234ZE, R-124, R-125, R-1270, R-13, R-134A, R-141B, R-142B, R-143A, R-152A, R-21, R-218, R-22, R-227EA, R-23, R-236FA, R-245FA, R-290, R-32, R-401A, R-401B, R-401C, R-402A, R-402B, R-403A, R-403B, R-404A, R-405A, R-406A, R-407A, R-407B, R-407C, R-407D, R-407E, R-407F, R-407H, R-408A, R-409A, R-409B, R-41, R-410A, R-410B, R-411A, R-411B, R-412A, R-413A, R-414A, R-414B, R-416A, R-417A, R-417B, R-417C, R-418A, R-419A, R-419B, R-420A, R-421A, R-421B, R-422A, R-422B, R-422C, R-422D, R-422E, R-423A, R-424A, R-425A, R-426A, R-427A, R-428A, R-434A, R-437A, R-438A, R-439A, R-440A, R-441A, R-442A, R-443A, R-444B, R-445A, R-446A, R-447A, R-448A, R-449A, R-449B, R-450A, R-452A, R-452B, R-453A, R-454A, R-454B, R-454C, R-455A, R-457A, R-471A, R-500, R-501, R-502, R-503, R-504, R-507, R-507A, R-508A, R-508B, R-509A, R-511A, R-513A, R-514A, R-515A, R-515B, R-600, R-600A, R-601, R-601A |
