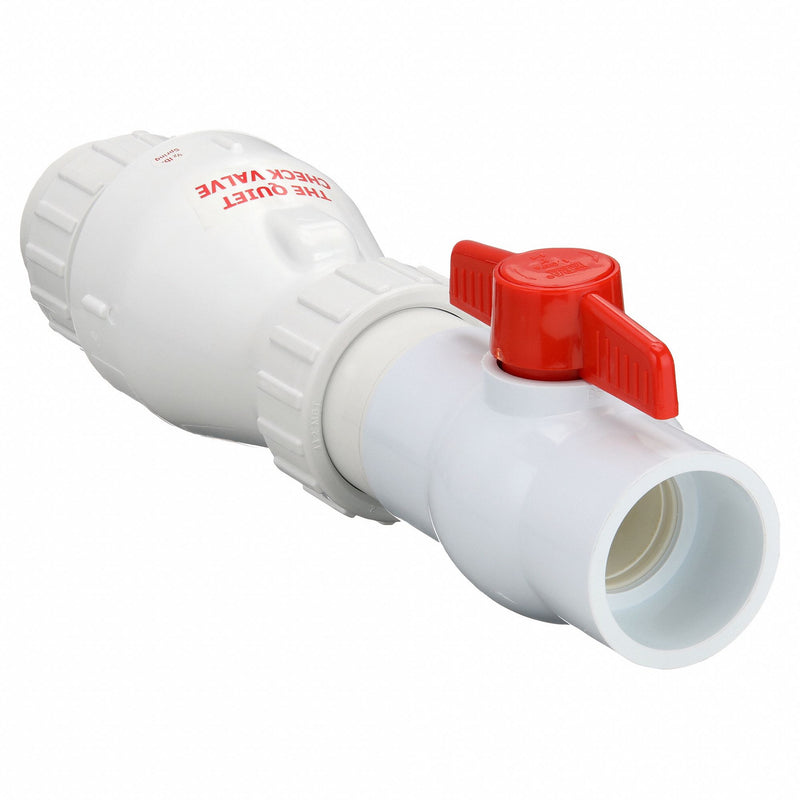

Zoeller 30-0236 Check Valve with Ball Valve, Swing, Inline Valve Body, 2 in Pipe Size, For Water Media, PVC
Original price
$75.90
-
Original price
$75.90
Original price
$75.90
$75.90
-
$75.90
Current price
$75.90
PVC (polyvinyl chloride) combination silent spring-loaded swing check and ball valves are made from a corrosion- and chemical-resistant plastic resin. Silent spring-loaded check valves prevent sharp increases in system pressure, also known as water hammer. These units have a ball valve connected to the outlet to stop and start media flow traveling through the valve for maintenance or if the swing check valve fails.
| Check Mechanism | Swing |
| Valve Body Style | Inline |
| Pipe Size | 2 in |
| For Media | Water |
| Body Material | PVC |
| Connection Type | Socket x Socket |
| Max. Pressure (CWP) | 50 psi |
| Cracking Pressure | 1 psi |
| Media Temp. Range | 75 °F to 130 °F |
| Mounting Orientation | Horizontal, Vertical |
| Silent Check | Silent |
| Seat Material | PVC |
| Seal Material | Rubber |
| Disc Material | PVC |
| Spring Material | Stainless Steel |
| Overall Length | 16.13 in |
