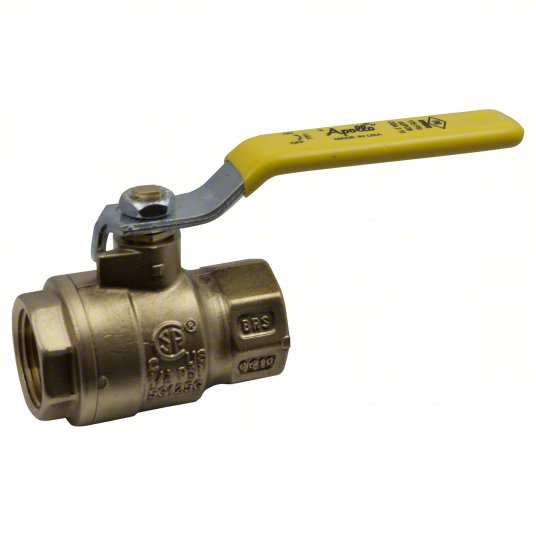

Apollo 77F10501 Manual Two-Way Ball Valve 1 in, Brass, Straight, FNPT x FNPT, 600 psi Max. Pressure
Original price
$60.63
-
Original price
$60.63
Original price
$60.63
$60.63
-
$60.63
Current price
$60.63
Manual Two-Way Ball Valve, Body Material Brass, For Media Steam, Valve Construction Two-Piece, Nominal Valve Size 1 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Brass, Ball Port Style Full Port, Handle - Locking Non-Locking, Handle Type Lever
| Body Style | Inline |
| Stem Type | Blowout Resistant |
| Standards | ARRA Compliant, Build America Buy America Act (BABA), Buy American Act (BAA), CSA B356, FM |
| Max. Pressure | 600 psi |
| Handle Material | Plated Steel, PVC |
| Ball Material | Brass |
| Temp. Range | 0 Degrees to 400 Degrees F |
| Port | Full |
| Seat Material | RPTFE |
| Max. Steam Pressure | 150 psi WSP |
| Connection Type | FNPT x FNPT |
| Valve Structure | 2-Piece |
| Stem Material | 316 Stainless Steel |
| Compliance | ARRA, CSA Certified B356, FM Approved, UL Listed |
| UPC | 670750714757 |
| Handle Type | Lever |
| Features | 100% Factory Tested, Adjustable Stem Packing, Corrosion Resistant Materials, Heavy Pattern Forged Design, Silicone Free Assembly |
| Seal Material | RPTFE |
| Valve Construction | Two-Piece |
| Connection Gender - Side 2 | Female |
| Connection Gender - Side 1 | Female |
| For Media | Steam |
| Cleaned and Bagged | Not Cleaned and Bagged |
| Vacuum Service Rating | 29 in Hg |
| Handle - Locking | Non-Locking |
| Valve Ways | 2-Way |
| Meets UL Flammable Gas and Liquid Standards | UL 125, UL 1477, UL 842 |
| Maximum Pressure - Steam | 150 psi |
| Manufacturer Warranty | 5 yr |
| Color - Valve Handle | Yellow |
| 3-A Standard Compliance | Not Rated |
| Connection Type - Side 2 | NPT |
| Maximum Pressure - Combustible Gas | Not Rated |
| Connection Type - Side 1 | NPT |
| Maximum Pressure - Operating | 600 psi |
| Valve Body Style | Straight |
| Color - Valve Body | Bronze |
| Ball Port Style | Full Port |
| Operating Temperature - Maximum | 400 Degrees F |
| Operating Temperature - Minimum | 0 Degrees F |
| Coefficient of Volume (Cv) | 0.01 |
| Valve Series | 77F |
