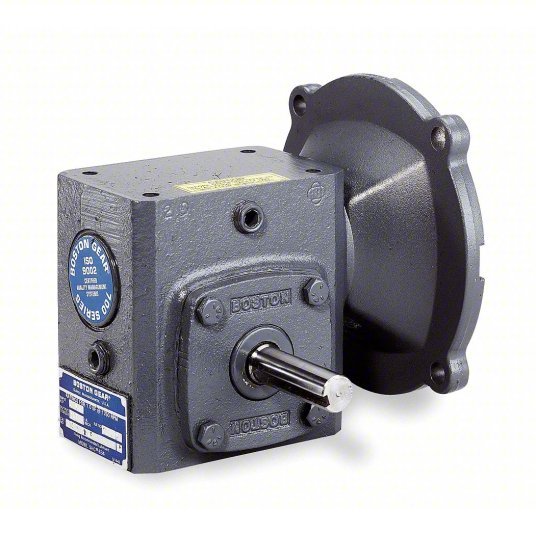

Boston Gear F732-10E-B9-G Speed Reducer, C-Face, 180TC/210C, 10:1
Original price
$3,375.49
-
Original price
$3,375.49
Original price
$3,375.49
$3,375.49
-
$3,375.49
Current price
$3,375.49
Speed Reducer, Input Connection Type C-Face, Gear Type Worm, Output Shaft Type Round, Maximum Output Speed 175 RPM, Motor Frame Designation 180TC/210C, Worm Center Distance 2.62 in, Base to Center 3.5 in, Gear Ratio 10:1, Rotation CW/CCW, Maximum Input Horsepower 5 hp, Maximum Output Torque 1602 in-lb, Overhung Load Capacity 1,300 ft-lb, Mounting Orientation Any Angle, Housing Material Cast Iron, Bearing Type Tapered Roller, Gear Material Hardened and Ground Steel
| Item | Speed Reducer |
| Nominal Ratio | 10:1 |
| Input RPM | 1,750 RPM |
| Nominal Output RPM | 175 RPM |
| Standards | AGMA |
| Gear Type | Worm |
| Shaft Orientation | Right Angle |
| Output Torque @ 7.5 HP | 1,602 in-lb |
| Overhung Load | 1,300 lb |
| Reducer Model No. | F732-10-B9-G |
| Seal Type | Double Lip |
| Pinion Material | Hardened Steel |
| Number of Stages | 1 |
| Single/Double Output/Universal | Single Output |
| Duty | Standard |
| Mounting | Any Position |
| Finish | Powdered Epoxy Paint |
| Lubrication | Klubersynth UH1 6-460 |
| Gear Material | Hardened and Ground Steel |
| Housing Material | Cast Iron |
| Rotation | CW/CCW |
| Output Torque @ 1/40 HP | 3600 in.-lb. |
| Speed Reducer Type | C-Face |
| Max. Output Torque | 1,602 in-lb |
| Max. Input HP | 5 hp |
| Solid/Hollow Output Shaft | Solid |
| Base | Optional |
| Worm Gear Material | Bronze |
| Worm Center Distance | 2.62 in |
| Bearings | Tapered Roller |
| Frame | 180TC/210C |
| Maximum Input Speed | 1,750 RPM |
| Output Shaft Type | Round |
| Gear Ratio | 10:1 |
| Housing Material Finish | Powder Coated Epoxy Paint |
| Motor Frame Designation | 180TC/210C |
| Maximum Input Horsepower | 5 hp |
| Maximum Output Speed | 175 RPM |
| Overhung Load Capacity | 1,300 ft-lb |
| Base to Center | 3.5 in |
| Mounting Orientation | Any Angle |
| Maximum Output Torque | 1602 in-lb |
| Input Connection Type | C-Face |
| Bearing Type | Tapered Roller |
