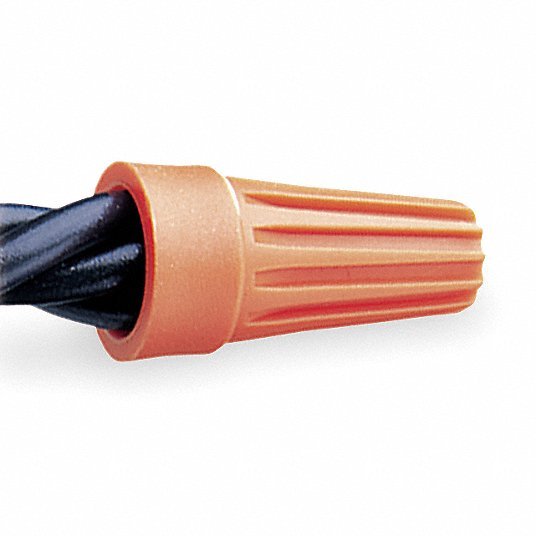

Buchanan WT3-1 Twist-On Wire Connectors Orange, 16 AWG – 14 AWG Wire Sizes, 600 V

Twist-On Wire Connectors, Color Orange, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (2) 18 AWG, Maximum Wire Combination (2) 14 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 5, Standards CSA Certified, UL Listed, Wire Connector Style Standard, Fill Material Not Applicable, Insulation Material Polypropylene, Maximum Single Wire Size 14 AWG

Type	Twist-On
Color	Orange
Insulation Material	Polypropylene
Maximum Voltage	600 V
Minimum Wire Combination	(2) 18 AWG
Maximum Wire Combination	(2) 14 AWG
Maximum Operating Temperature	221 Degrees F
UL 94 Flammability Rating	V-2
Series	WT3
Standards	CSA Certified, UL Listed
Wire Connector Style	Standard
Application	General Purpose
Special Features	Deep Skirt Protects Against Flash-Over, Fixed, Square-Wire Spring Creates Secure Connections, Positive Grip Shell Design for Fast, Easy Installation
Maximum Conductors	5
For Conductor Material	Copper
Material	Steel
Termination Style	Twist-On
