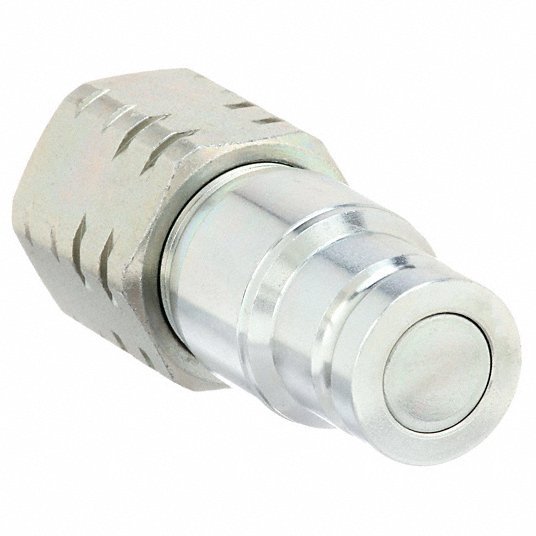

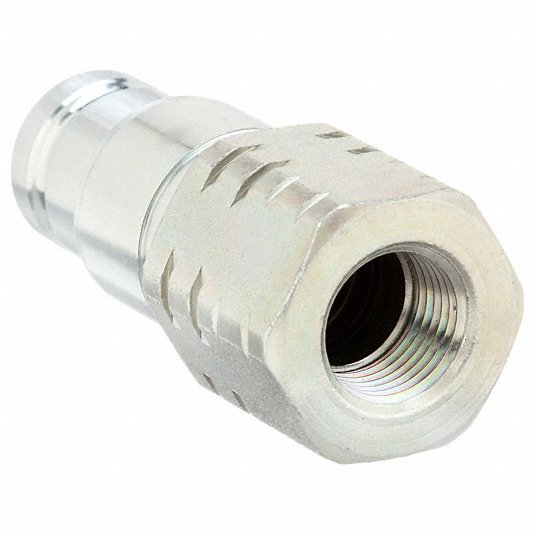

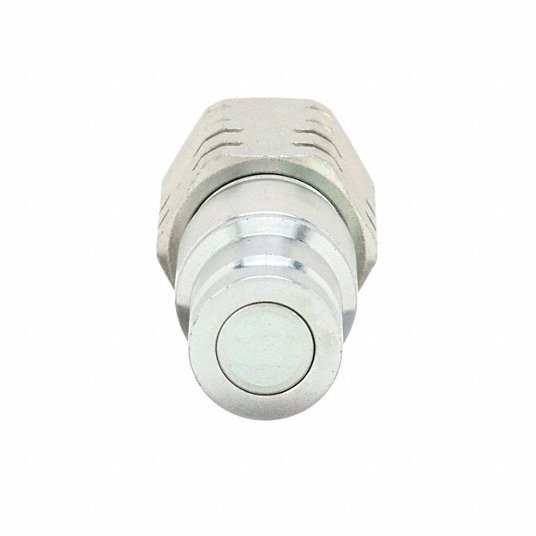

Eaton Hansen 10FFP37 Hydraulic Quick Connect Hose Coupling 3/8 in Coupling Size, Steel, 29 lpm Max. Flow Rate
Original price
$54.09
-
Original price
$54.09
Original price
$54.09
$54.09
-
$54.09
Current price
$54.09
Hydraulic Quick Connect Hose Coupling, Plug, FF Series, Steel, Coupling Size 3/8 in, Female, Max. Working Pressure @ 70 F 5,075 psi, Max. Flow Rate 29 lpm
| Coupler Interchange Type | HTMA |
| Connection Type | NPT |
| Seal Material | Nitrile |
| Coupler Flow Rate | 6.0 gpm |
| Max. Pressure | 5075 psi |
| Coupler Body Material | Zinc Plated Steel |
| Sleeve Material | Zinc Plated Steel |
| Coupler Finish | Clear Chromate |
| Series | FF |
| Shut Off | Flat Face |
| For Use With | 10FFS75UN, Mfr. No. 10FFS37 |
| Body Material | Steel |
| Coupling Locking Type | Push-to-Connect |
| Operating Temp. Range | -4 Degrees to 212 Degrees F |
| Parker Interchange | FEM-372-6FP |
| Valve Design | Tubular |
| Locking Mechanism | Standard Sleeve Lock |
| Bearing Material | Stainless Steel |
| Coupler Connection Type | FNPT |
| Standards | ISO 16028 |
| Hansen Interchange | 10FFP37 |
| Max. Flow Rate | 29 lpm |
| Includes Valve | Yes |
| Includes Bearing | Yes |
| Includes Shut Off | Yes |
| Pull Ring Material | PTFE |
| Coupling Component | Plug |
| Valve Type | 2-Way |
| Finish/Coating | Clear Chromate |
| Fitting Type | FNPT |
| Maximum Vacuum | 27.4 in Hg |
| Max. Working Pressure @ 70 F | 5,075 psi |
| Snap-Tite Interchange | 74N6-6F |
| Hose Fitting Gender | Female |
