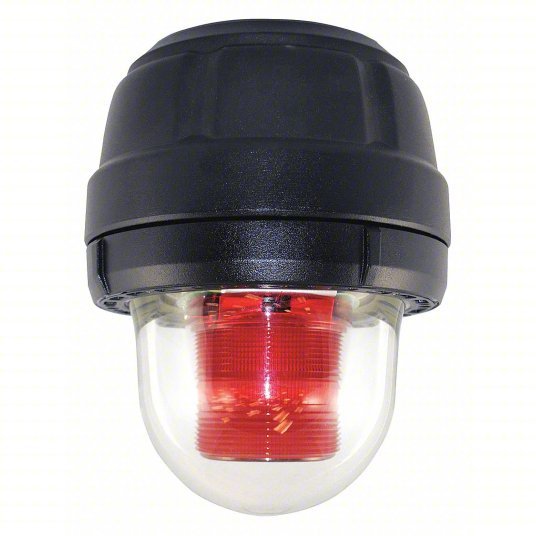

Federal Signal 27XST-120R-MOD Warning Light 120V AC, 11 3/8 in Overall Ht, 8 13/16 in Overall Dia, Red

Warning Light, Color Red, Lamp Type Strobe Tube, Flashes per Minute 80, Light Output 850 Candela, Lamp Life 10,000 hr, Lens Design Fresnel, Lens Material Polycarbonate, Housing Material Cast Aluminum, Mounting Ceiling, Pendant, Wall, Operating Temp. -67 Degrees to 150 Degrees F, Rating NEMA 4X, Power Source Wire, Current Drawn 1.14A AC, Width 8 13/16 in, Height 14 9/16 in

Lamp Type	Strobe Tube
Lamp Life	10,000 hr
Color	Red
Current Drawn	1.14A AC
Mounting	Ceiling, Pendant, Wall
Operating Temp.	-67 Degrees to 150 Degrees F
Lens Design	Fresnel
Light Output	850 Candela
Flashes per Minute	80
Power Source	Wire
Standards	CSFM Approved, cUL Listed, cULus Listed, Marine Rated, UL Listed
Lens Material	Polycarbonate
Housing Material	Cast Aluminum
Rating	NEMA 4X
Voltage	120VAC
Lens Color	Red
Application	Oil Rigs; Mines; Refineries; Chemical Plants
Input Voltage	120 V AC
Housing Color	Black
Features	Conformal Coated PCBA
Lamp Life (Hours)	10,000 hr.
Material	polycarbonate
Product Type	Strobe Light
NEMA Rating	NEMA 4X
Operating Temperature - Minimum	-67 Degrees F
Includes Mounting Hardware	No Mounting Hardware
Lifespan	10,000 hr
Light Intensity	850 cd
IP Rating	IP66, IP69K
Brightness Selection	Fixed Brightness
Operating Current	1.140 A @ 120V AC
Lens Shape	Dome
For Hazardous Location	Class I, Division 1, Class I, Division 2, Class II, Division 1
Control Protocol	Direct Wire
Light Operating Mode	Strobe
Operating Temperature - Maximum	150 Degrees F
Footprint Shape	Circle
Requires Base	Base Required
