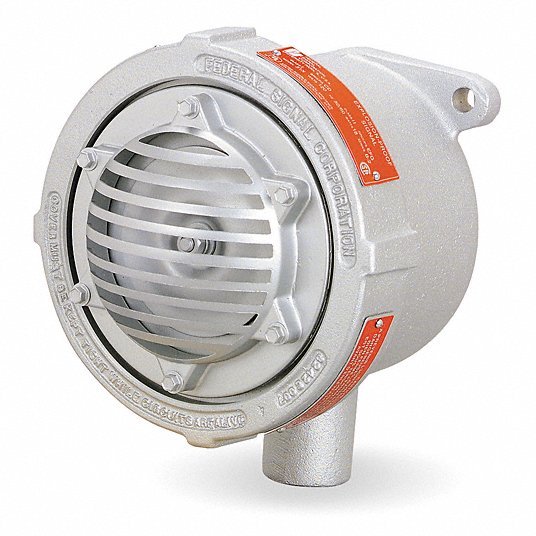

Federal Signal 31X-120-3 Vibrating Horn Sound, 120V AC, Indoor

Audible Alarm Type Horn, Visual Indicator Type No Visual Indicator, Voltage 120V AC, Decibels 100 dB, Sound Pattern Continuous, Indoor/Outdoor Indoor, Mounting Conduit, Height 7.625 in, Width 6.5 in, Depth 6.5 in, Diameter 6.5 in, Vibrating Yes, Housing Material Aluminum, Rating NEMA 4X, Operating Temp. -35 Degrees to 150 Degrees F, Features Corrosion Resistant Vibrating Horns, Standards CSA Certified, cUL Listed, UL Listed, Amps 0.20 AC, Color Gray, Includes Stainless Steel Diaphragms

Housing Material	Aluminum
Mounting	Conduit
Amps	0.20 AC
Color	Gray
Audible Alarm Type	Horn
Voltage	120V AC
Standards	CSA Certified, cUL Listed, UL Listed
Indoor/Outdoor	Indoor
Decibels	100 dB
Sound Pattern	Continuous
Hazardous Division	1
Vibrating	Yes
Operating Temp.	-35 Degrees to 150 Degrees F
Visual Indicator Type	No Visual Indicator
Hazardous Class	I
Power Source	Wire
Includes	Stainless Steel Diaphragms
Alarm Type	Audible
Input Voltage	120 V AC
Features	Corrosion Resistant Vibrating Horns
Rating	NEMA 4X
Product Type	Horn
Material	Aluminum
For Location	Indoor
Control Protocol	Direct Wire
Sound Continuity	Continuous
Alarm Volume @ 10 ft - Maximum	100 dBA
Sound Style	Horn
Volume Selection	Fixed Volume
Connection Type	Wire Leads
For Hazardous Location	Class I, Division 1, Class II, Division 1
Operating Temperature - Maximum	104 Degrees F
NEMA Rating	NEMA 4X
Operating Temperature - Minimum	-13 Degrees F
Vibration	Vibrating
Mounting Style	Surface Mount
IP Rating	NEMA 4X
Operating Current	0.20 A
Sound Principle	Vibrating
Legend	Non applicable
Alarm Volume @ 1 m - Maximum	110 dBA
Operating Voltage	120V AC
