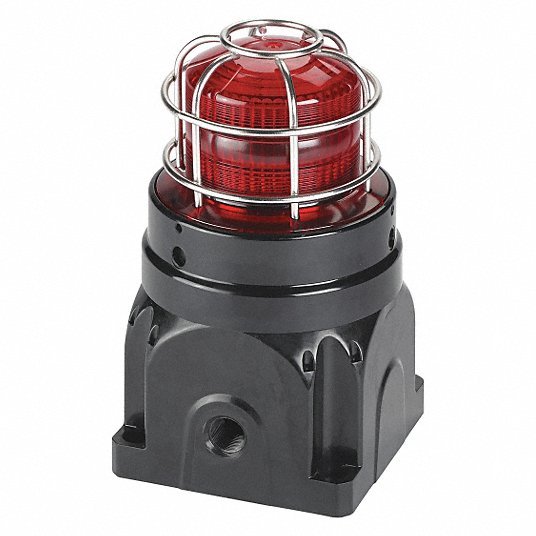

Federal Signal G-STR-230-D-R Strobe Light Xenon, 220 to 240V AC, 8 15/16 in Overall Ht, 5 7/32 in Overall Lg, Red

Strobe Light, Color Red, Lamp Type Xenon, Flashes per Minute 60, Light Output 21 Joules, Lamp Life 10,000 hr, Lens Design Fresnel, Lens Material Polycarbonate, Housing Material Glass Reinforced Polyester, Mounting Surface, Operating Temp. -58 Degrees to 158 Degrees F, Rating IP66, Power Source Wire, Current Drawn 0.34A AC, Width 5 15/64 in, Depth 5 15/64 in, Height 8 61/64 in

Color	Red
Lamp Type	Xenon
Power Source	Wire
Lamp Life	10,000 hr
Lens Material	Polycarbonate
Flashes per Minute	60
Housing Material	Glass Reinforced Polyester
Standards	ABS, ATEX Ex d IIC Ex de IIC and Ex tb IIIC, CE, CSFM Approved, cUL Listed, EAC, IECEx, INMETRO, UKEX Certified, UL Listed
Features	Corrosion Resistant, M20 Entries Standard
Voltage	220 to 240V AC
Rating	IP66
Mounting	Surface
Current Drawn	0.34A AC
Lens Design	Fresnel
Light Output	21 Joules
Includes	Dome Guard
Operating Temp.	-58 Degrees to 158 Degrees F
Product Type	Strobe Light
Connection Type	TermiN/Al Block
NEMA Rating	NEMA 4X
Control Protocol	User Operated
Requires Base	Base Not Required
Light Source	Xenon
Lens Shape	Dome
For Hazardous Location	Class I, Division 2, Class II, Division 2
Brightness Selection	Fixed Brightness
Operating Current	0.190 A @ 220 to 240V AC
Mounting Style	Surface Mount
Footprint Shape	Square
Housing Color	Black
Operating Temperature - Maximum	158 Degrees F
Operating Temperature - Minimum	-67 Degrees F
Light Intensity	500 cd
Light Operating Mode	Strobe
Lifespan	10,000 hr
Lens Color	Red
Includes Mounting Hardware	Mounting Hardware Included
Mounting Mechanism	Screw
IP Rating	IP66, IP67, IP69K
Operating Voltage	220 to 240V AC
