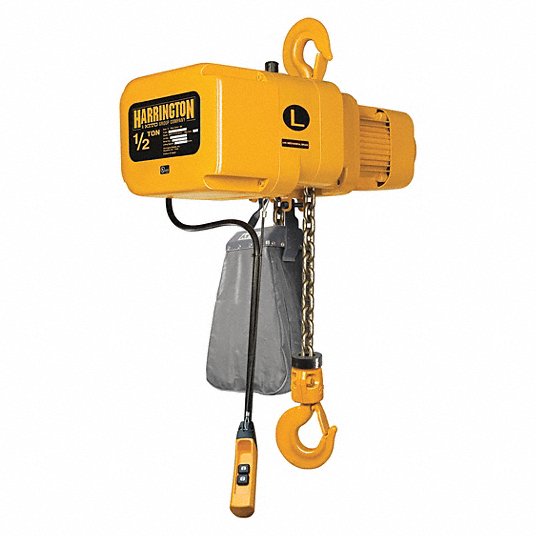

Harrington NER005L-20 Electric Chain Hoist H4 - Heavy Duty, 208-230/460V AC, Hook Mounted - No Trolley, 15 fpm
Original price
$4,526.59
-
Original price
$4,526.59
Original price
$4,526.59
$4,526.59
-
$4,526.59
Current price
$4,526.59
Electric Chain Hoist, Duty Classification H4, Mount Type Hook Mounted - No Trolley, Maximum Lifting Capacity 1,000 lb, Number of Speeds 1, Programmable Non-Programmable, Fixed Lift Speed 15 fpm, Minimum Lift Speed Not Applicable, Maximum Lift Speed Not Applicable, Maximum Lifting Length 20 ft, Current at Minimum Voltage 3.4 A, Current at Maximum Voltage 1.7 A, Motor Horsepower 3/4 hp, Operating Voltage 208-230/460V AC, Headroom 14 19/32 in
| Electric Hoist Item | Chain Hoist |
| Hoist Lift | 20 ft |
| Hoist Mount | Hook Mounted - No Trolley |
| Includes | Chain Container, Limit Switches, Plug-In Connections |
| Lift Speed | 15 fpm |
| Load Capacity | 1,000 lb |
| Min. Between Hooks | 14 5/8 in |
| Motor HP | 0.75 hp |
| Phase | 3 |
| Standards | ANSI/ASME B30.16, ANSI/ASME HST-1M, ANSI/NFPA 70, UL 1340 |
| Voltage | 208-230/460V AC |
| Fits Brand | Harrington Hoists Inc |
| Item | Electric Chain Hoist |
| Trolley Configuration | Hook Mounted - No Trolley |
| Lubrication | Oil Bath |
| Clutch | Friction |
| Amps @ Low Volts | 3.4 A |
| Control | 110V Push Button Control Pendant |
| Finish | Electrostatic Enamel |
| Number of Speeds | 1 |
| Thermal Protection | Yes |
| Brake | DC Current |
| Classification | H4 |
| Control Cord | 16 ft |
| Reeving | 1 |
| Material | Die Cast Aluminum |
| Features | Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option |
| Includes Clutch | Clutch Included |
| Lifting Hook Material | Carbon Steel |
| Resistance Properties | Corrosion Resistant, Wear Resistant |
| Overload Protection Included | Yes |
| Body Finish | Painted |
| Current at Min. Voltage | 3.4 A |
| Number of Load Chains | 1 |
| Brake Type | DC Current |
| Chain Material | Alloy Steel |
| Pendant IP Rating | IP65 |
| Body Material | Aluminum |
| Clutch Type | Friction Clutch |
| For Outdoor Use | Yes |
| Controls | Push Button Pendant |
| Fixed Lift Speed | 15 fpm |
| Lifting Hook Type | Swivel Hook with Safety Latch |
| Chain Finish | Nickel Plated |
| Number of Reeves | 1 |
| Programmable | Non-Programmable |
| Motor Horsepower | 3/4 hp |
| Mount Type | Hook Mounted - No Trolley |
| Maximum Lifting Capacity | 1,000 lb |
| Headroom | 14 19/32 in |
| Hoist IP Rating | IP55 |
| Included Components | Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook |
| Current at Max. Voltage | 1.7 A |
| Duty Classification | H4 |
| Starts and Stops per Hour | 360 |
| Includes Brake | Brake Included |
| Chain Grade | Grade 80 |
| Operating Voltage | 208-230/460V AC |
