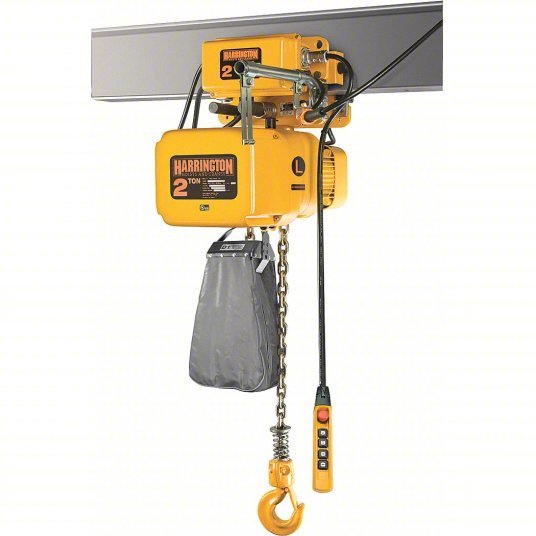

Harrington NERM020C-L-20 Electric Chain Hoist H4 - Heavy Duty, Motorized Trolley, 208-230/460V AC, 20 ft Lift Lg
Original price
$11,383.59
-
Original price
$11,383.59
Original price
$11,383.59
$11,383.59
-
$11,383.59
Current price
$11,383.59
Electric Chain Hoist, Duty Classification H4, Mount Type Motorized Trolley, Maximum Lifting Capacity 4,000 lb, Number of Speeds 1, Programmable Non-Programmable, Fixed Lift Speed 7 fpm, Minimum Lift Speed Not Applicable, Maximum Lift Speed Not Applicable, Trolley Speed 40 fpm, Maximum Lifting Length 20 ft, Current at Minimum Voltage 4.8 A, Current at Maximum Voltage 1.7 A, Motor Horsepower 1 1/4 hp, Operating Voltage 208-230/460V AC, Headroom 27 3/16 in, For Minimum Beam Height 4 29/32 in
| Color | Yellow |
| Electric Hoist Item | Chain Hoist |
| Hoist Lift | 20 ft |
| Hoist Mount | Motorized Trolley |
| Includes | Motorized Trolley, Safety Latch, Safety Standards |
| Lift Speed | 7 fpm |
| Load Capacity | 4,000 lb |
| Min. Between Hooks | 27 13/64 in |
| Motor HP | 1.2 hp |
| Phase | 3 |
| Standards | ANSI/ASME B30.16, ASME HST-1, NFPA 70, RoHS Compliant, UL 1340 |
| Voltage | 230/460 |
| Wheel Material | Stamped Steel |
| Trolley Speed | 40 fpm |
| Control | 110V Push Button Control Pendant |
| Trolley Configuration | Motorized Trolley |
| Brake | DC Current |
| Amps @ Low Volts | 4.8 A |
| Classification | H4 |
| Hz | 60 |
| Item | Electric Chain Hoist |
| Control Cord | 16 ft |
| Reeving | 2 |
| Finish | Electrostatic Enamel |
| Number of Speeds | 1 |
| Thermal Protection | Yes |
| Clutch | Friction |
| Lubrication | Oil Bath |
| Features | Dual Speed Trolley VFD, Rubber Bumpers, Side Guide Rollers |
| Lifting Hook Type | Swivel Hook with Safety Latch |
| Controls | Push Button Pendant |
| Includes Brake | Brake Included |
| Motor Horsepower | 1 1/4 hp |
| Body Material | Aluminum |
| Overload Protection Included | Yes |
| Lifting Hook Material | Carbon Steel |
| Number of Reeves | 2 |
| Resistance Properties | Corrosion Resistant |
| Fixed Lift Speed | 7 fpm |
| Number of Load Chains | 1 |
| Trolley IP Rating | IP55 |
| Pendant IP Rating | IP65 |
| Hoist IP Rating | IP55 |
| For Outdoor Use | Yes |
| Chain Material | Alloy Steel |
| Current at Min. Voltage | 4.8 A |
| Chain Finish | Nickel Plated |
| Current at Max. Voltage | 1.7 A |
| Brake Type | DC Current |
| Mount Type | Motorized Trolley |
| Body Finish | Enamel |
| Chain Grade | Grade 80 |
| Includes Clutch | Clutch Included |
| Headroom | 27 3/16 in |
| Programmable | Non-Programmable |
| Included Components | Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Rubber Bumpers, Safety Latch Hook |
| Clutch Type | Friction |
| Duty Classification | H4 |
| Maximum Lifting Capacity | 4,000 lb |
| Trolley Wheel Material | Steel |
| Starts and Stops per Hour | 120, 240 |
