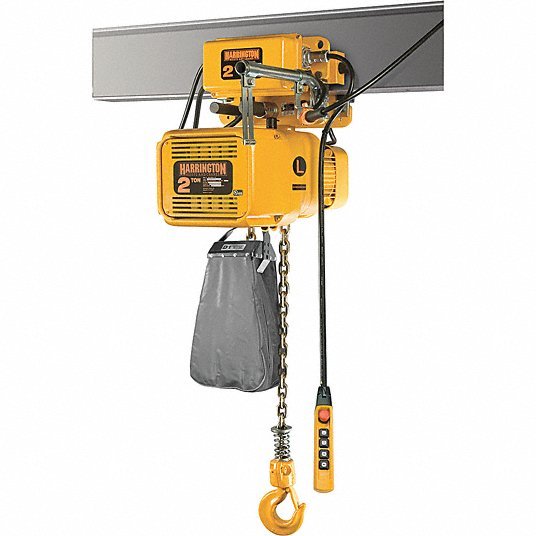

Harrington NERM020CD-L-20 / 230V Electric Chain Hoist H4 Heavy Duty, Motorized Trolley, 230V AC, 20 ft Lift Lg
Original price
$14,699.59
-
Original price
$14,699.59
Original price
$14,699.59
$14,699.59
-
$14,699.59
Current price
$14,699.59
Electric Chain Hoist, Duty Classification H4, Mount Type Motorized Trolley, Maximum Lifting Capacity 4,000 lb, Number of Speeds 2, Programmable Programmable by VFD, Fixed Lift Speed Not Applicable, Minimum Lift Speed 1 fpm, Maximum Lift Speed 7 fpm, Trolley Speed 40 fpm, Maximum Lifting Length 20 ft, Current at Minimum Voltage 5.1 A, Current at Maximum Voltage 1.7 A, Motor Horsepower 1 1/4 hp, Operating Voltage 230V AC, Headroom 27 3/16 in, For Minimum Beam Height 4 29/32 in
| Color | Yellow |
| Electric Hoist Item | Chain Hoist |
| Hoist Lift | 20 ft |
| Hoist Mount | Motorized Trolley |
| Includes | Motorized Trolley, Safety Latch, Safety Standards |
| Lift Speed | 7/1 fpm |
| Load Capacity | 4,000 lb |
| Min. Between Hooks | 27 13/64 in |
| Motor HP | 1.2 hp |
| Phase | 3 |
| Standards | ANSI/ASME B30.16, ASME HST-1, NFPA 70, RoHS Compliant, UL 1340 |
| Voltage | 230V AC |
| Wheel Material | Stamped Steel |
| Lubrication | Oil Bath |
| Finish | Electrostatic Enamel |
| Reeving | 2 |
| Brake | DC Current |
| Hz | 60 |
| Control Cord | 16 ft |
| Classification | H4 |
| Thermal Protection | Yes |
| Clutch | Friction |
| Control | 110V Push Button Control Pendant |
| Trolley Speed | 40 fpm |
| Type | Electric Chain Hoist |
| Number of Speeds | 2 |
| Trolley Configuration | Motorized Trolley |
| Amps @ Low Volts | 5.1 A |
| Features | Dual Speed Trolley VFD, Rubber Bumpers, Side Guide Rollers |
| Starts and Stops per Hour | 120, 240 |
| Includes Brake | Brake Included |
| Maximum Lifting Capacity | 4,000 lb |
| Controls | Push Button Pendant |
| Minimum Lift Speed | 1 fpm |
| Mount Type | Motorized Trolley |
| Pendant IP Rating | IP65 |
| Trolley IP Rating | IP55 |
| Chain Grade | Grade 80 |
| For Outdoor Use | Yes |
| Current at Min. Voltage | 5.1 A |
| Number of Reeves | 2 |
| Body Material | Aluminum |
| Duty Classification | H4 |
| Resistance Properties | Corrosion Resistant |
| Clutch Type | Friction |
| Overload Protection Included | Yes |
| Motor Horsepower | 1 1/4 hp |
| Number of Load Chains | 1 |
| Includes Clutch | Clutch Included |
| Chain Material | Alloy Steel |
| Brake Type | DC Current |
| Lifting Hook Type | Swivel Hook with Safety Latch |
| Current at Max. Voltage | 1.7 A |
| Headroom | 27 3/16 in |
| Programmable | Programmable by VFD |
| Included Components | Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Rubber Bumpers, Safety Latch Hook |
| Hoist IP Rating | IP55 |
| Trolley Wheel Material | Steel |
| Body Finish | Enamel |
| Lifting Hook Material | Carbon Steel |
| Chain Finish | Nickel Plated |
| Maximum Lift Speed | 7 fpm |
| Operating Voltage | 230V AC |
