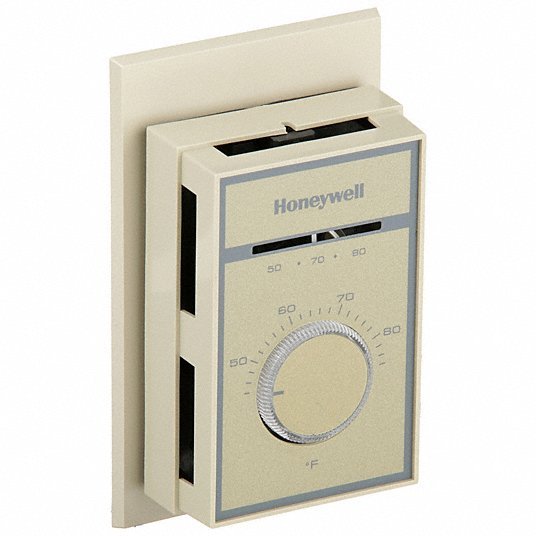

Honeywell T651A3018 Line Volt Mechanical Tstat, 44 Degrees to 86 Degrees F, SPDT
Original price
$239.33
-
Original price
$239.33
Original price
$239.33
$239.33
-
$239.33
Current price
$239.33
Line Volt Mechanical Tstat, Thermostat Switch Type SPDT, Thermostat Control Range 44 Degrees to 86 Degrees F, Thermostat Voltage 120 to 277V AC, Full Load Amps @ 120VAC 15 A, Full Load Amps @ 240VAC 4 A, Thermostat Programmable No, Remote Sensing Capability No, Thermostat Heating/Cooling Heating/Cooling, Remote Sensing Bulb Included No, Switch Action Open/Close on Rise, Number of Switches 1, Differential 2 Degrees F, Height 4 1/2 in, Width 2 15/16 in, Depth 1 1/2 in
| Switch Action | Open/Close on Rise |
| Voltage | 120 to 277VAC |
| Sensor Type | Vapor-Filled Dual-Diaphragm |
| Differential | 2 Degrees F |
| Display Type | Analog |
| Thermostat Control Range | 44 Degrees to 86 Degrees F |
| Mounting Location | Standard Vertical or Horizontal Outlet Box |
| Switch Type | SPDT |
| Color | Beige |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Remote Sensing Bulb Included | No |
| Full Load Amps @ 120VAC | 15 A |
| Includes | Vertical Scaleplate with Thermometer; Horizontal Scaleplate with No Thermometer; Range Stops and Locking Screws; Wall Plate; High Accuracy Dual Diaphragm Sensor |
| Pilot Duty Contacts (VA) | 125 VA |
| Locked Rotor Amps @ 240V | 24 A |
| Remote Sensing Capability | No |
| Mounting Type | Vertical or Horizontal |
| Number of Switches | 1 |
| Standards | UL File No. E47434, Guide No. XAPX., CSA Certified, File No. LR1322 |
| Thermostat Switch Type | SPDT |
| Item | Line Volt Mechanical Tstat |
| Contact Rating Resistive @ 120V | 22 A |
| Thermostat Programmable | No |
| Thermostat Voltage | 120 to 277V AC |
| Thermostat Heating/Cooling | Heating/Cooling |
| Locked Rotor Amps @ 120V | 48 A |
| Control Range | 44 Degrees to 86 Degrees F |
| Contact Rating Resistive @ 240V | 22 A |
| Full Load Amps @ 240VAC | 4 A |
| Voltage Range | 120 to 277VAC |
| Display | Analog |
| Type | Heating/Cooling |
| Full Load Amps @ 120V AC | 9.8 A |
| Number of Poles | 1 |
| Number of Heating Stages | 1 |
| Electrical Connection Type | Hardwired |
| Pilot Duty Rating | 125 VA |
| Contact Rating | 120 to 277V AC |
| Housing Type | Standard Housing |
| Frequency | 50 Hz, 60 Hz |
| Temperature Scale | Fahrenheit |
| Changeover Type | Automatic |
| System Settings | Auto |
| Full Load Amps @ 240V AC | 4.9 A |
| Resistive Amps @ 208V AC | 22 A |
| Differential Type | Fixed |
| Enclosure Color | Beige |
| Housing Material | Plastic |
| Temperature Control Range | 44 Degrees to 86 Degrees F |
| Includes Positive Off | No |
| Compatible System Type | Electric Heating, Fan Coil Units |
| Fan Settings | No Fan Setting |
| Minimum Control Temperature | 44 Degrees F |
| Housing Color | Beige |
| Temperature Differential | 2 Degrees F |
| Mounting Direction | Horizontal; Vertical |
| Number of Cooling Stages | 1 |
| Switch Type/Action | SPDT, Open/Close on Rise |
| Maximum Control Temperature | 86 Degrees F |
| Stages | 1H/1C |
| Package Quantity | 1 |
