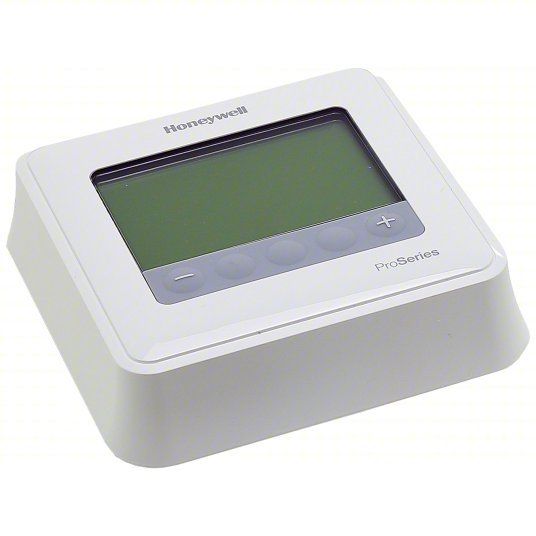

Honeywell TH4110U2005/U Low Voltage Thermostat Heat and Cool, Auto, E/G/O/B/W/W2/Terminal Designations
Original price
$117.95
-
Original price
$117.95
Original price
$117.95
$117.95
-
$117.95
Current price
$117.95
Low Voltage Thermostat, Stages Heat 1, Stages Cool 1, Temp. Settings per Day 0, 1, 2, 4, Programs per Week 7, 5-2, 5-1-1 or Nonprogrammable, Terminal Designations E, G, O/B, W, W2, Y, WiFi Capability No, System Switching Yes, Fan Switching Yes, Display Size 5.44 sq in, Display Type Digital, Display Color Blue, Key Pad Lockout Yes, Programmable Fan Yes, Automatic Changeover Yes, Humidification Control No, Dehumidification Control No, Remote Sensing Capability No, Temporary Program Override Yes
| Voltage | 20/30VAC |
| Stages Heat | 1 |

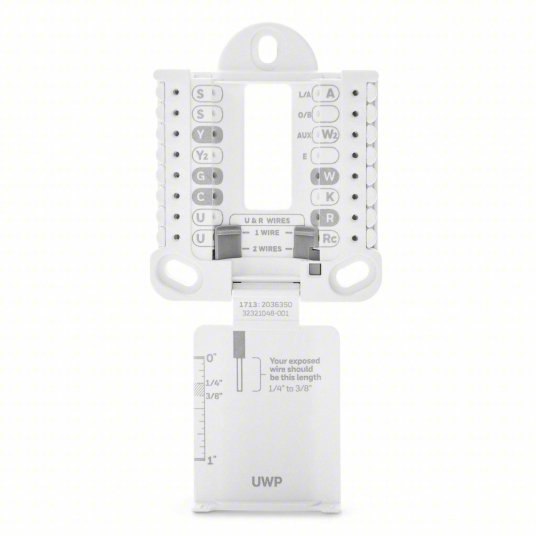

| Mounting Type | UWP Mounting System |
| Mounting Location | Wall |
| Color | White |
| Control Range | Heat 40 Degrees F to 90 Degrees F; Cool 50 Degrees F to 99 Degrees F |
| System Switching | Auto-Heat-Cool-Off |
| Stages Cool | 1 |
| Dual Transformer Compatible | No |
| Power Method | Hardwired/Battery |
| 750mV Compatible | No |
| Programs per Week | 7, 5-2, 5-1-1 |
| Temperature Limiting | No |
| Humidification Control | No |
| Temporary Program Override | Yes |
| Fan Switching | Yes |
| Features | Programmable, Universal Mounting |
| Key Pad Lockout | No |
| WiFi Capability | No |
| Dehumidification Control | No |
| Automatic Changeover | Yes |
| Temp. Settings per Day | 0, 1, 2, 4 |
| Low Battery Indicator | Yes |
| Display Type | Backlit |
| For Use With | Gas, Oil or Electric Heat with A/C, Warm Air, Hot Water, High-Efficiency Furnace, Heat Pumps, Steam, Gravity |
| Includes | Universal Wall Plate Mounting System, Mounting Hardware, J Box Adapter, Decorative Cover Plate, Installation Instructions and User Guide |
| Batteries Included | Yes |
| Programmable Fan | Yes |
| Temporary Temperature Hold | Yes |
| Terminal Designations | RC, R, C, W, W2, AUX, Y, Y2, O/B, G, K, E, U, U, L/A, S, S |
| Display Color | Blue |
| Filter Indicator | No |
| Battery Backup | Yes |
| Stages | 1H/1C Conventional, 1H/1C Heat Pump |
| Control Type | Push Button |
| System Settings | Auto-Cool-Heat-Off |
| Number of Cooling Stages - Conventional System | 1 |
| Mounting Direction/Shape | Square |
| Operating Humidity Range | 5% to 90% RH |
| Shape | Square |
| Maximum Operating Humidity | 90 % |
| Millivolt Compatible | No |
| Temperature Readout | Yes |
| Operating Temperature Range | 32 Degrees to 120 Degrees F |
| Temperature Differential | 1 Degrees F |
| Number of Heating Stages - Heat Pump System | 1 |
| Application/Stages | Heat and Cool; 1H/1C Conventional, 1H/1C Heat Pump |
| Temperature Scale | Fahrenheit/Celsius |
| Minimum Control Temperature | 40 Degrees F |
| Number of Heating Stages - Conventional System | 1 |
| Maximum Operating Temperature | 120 Degrees F |
| Includes Batteries | Yes |
| Minimum Operating Temperature | 32 Degrees F |
| Programming Capability | 5-1-1, 5-2, 7 Day |
| System/Fan Settings | Auto-Cool-Heat-Off/Auto-On |
| Mounting Direction | Horizontal |
| Housing Color | White |
| Backlit Screen | Yes |
| Backlit Screen Color | Blue |
| Contact Rating | 20/30V AC |
| Number of Cooling Stages - Heat Pump System | 1 |
| Filter Change Reminder | No |
| Includes Positive Off | Yes |
| Number of Zones | 1 |
| Fan Settings | Auto-On |
| Thermostat Type | Low Voltage |
| Temperature Control Range | 40 Degrees to 99 Degrees F |
| Changeover Type | Automatic |
| Compatible System Type | Gas Forced Air Furnaces, Heat Pump without Aux, Hydronic Systems, Electric Forced Air Furnaces |
| Temperature settings per day | 0, 1, 2, 4 |
| Frequency | 50 Hz, 60 Hz |
| Application | Heat and Cool |
| Electrical Connection Type | Hardwired |
| Maximum Control Temperature | 99 Degrees F |
| Minimum Operating Humidity | 5 % |
