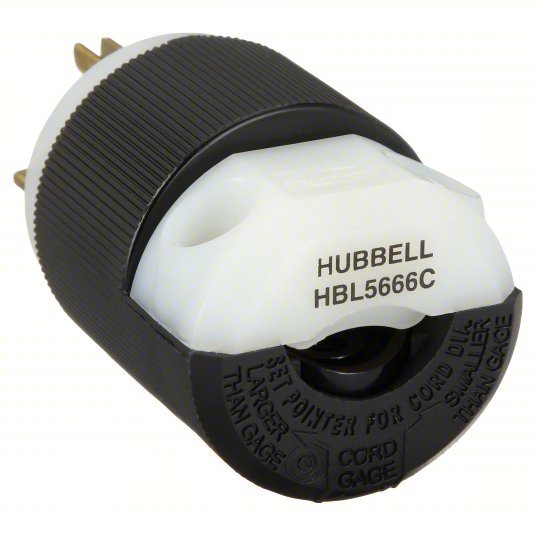

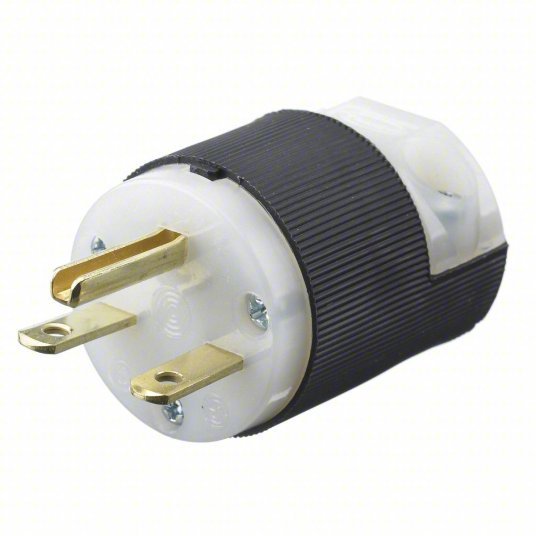

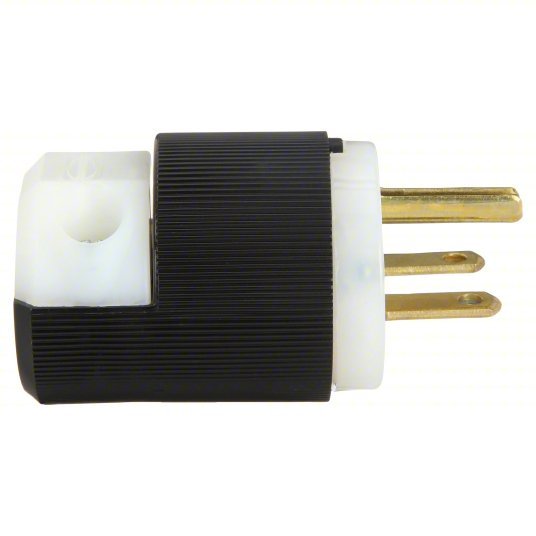

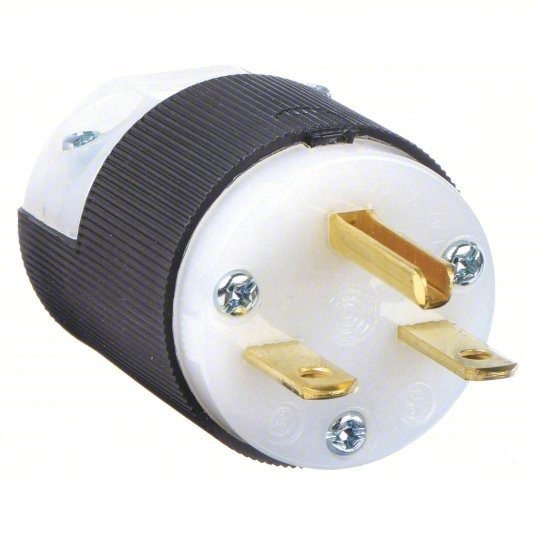

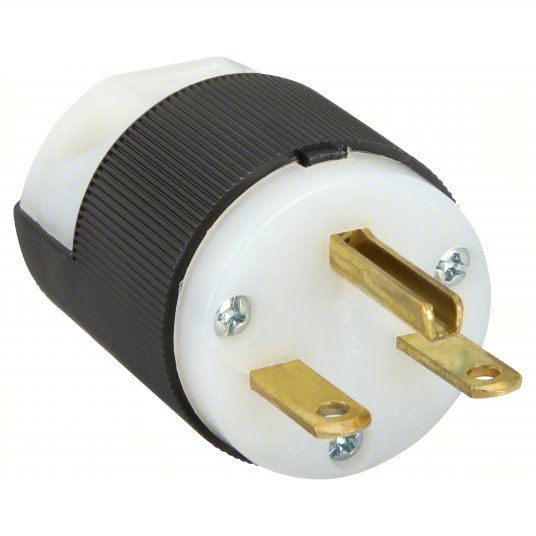

Hubbell HBL5666C Straight Blade Plug 6-15P, 15 A, 250V AC, Black/White, 2 Poles
Original price
$36.39
-
Original price
$36.39
Original price
$36.39
$36.39
-
$36.39
Current price
$36.39
Straight Blade Plug, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Horsepower Rating 1 1/2 hp, Housing Color Black, White, IP Rating IP20, NEMA Plug Configuration 6-15P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, UL 94 Flammability Rating HB, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.72 in
| NEMA Plug Configuration | 6-15P |
| Current Rating | 15 A |
| Voltage Rating | 250V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Blades | 3 |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Connection Orientation | Straight |
| Grounding | Grounded |
| Housing Color | Black, White |
| IP Rating | IP20 |
| Standards | CSA C22.2, UL 498 |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Antimicrobial | No |
| HP | 1.5 |
| Number of Wires | 3 |
| Grade | Industrial |
| Amps | 15 |
| Material | Nylon |
| Special Features | Corrosion resistant |
| Housing Material | Nylon |
| Minimum Operating Temperature | -40 Degrees F |
| Market | Commercial, Industrial |
| Insulation Material | Nylon |
| Maximum Operating Temperature | 167 Degrees F |
| Horsepower Rating | 1 1/2 hp |
| Polarized | Yes |
| UL 94 Flammability Rating | HB |
| Weight (Lbs.) | 0.15 |
| Environment | Dry |
| Cord Clamp Material | Nylon-Natural |
| Dielectric Strength | Withstands 2000V per UL498 |
| Contact Blades Material | .060" (1.5) Brass |
| Body Style | Straight |
| Ground Screw Material | #8-32 Brass, Multiple Drive (Green) |
| Operating Temp. | -40°C to 60°C; Maximum continuous 75°C; minimum -40°C (w/o impact) |
| Temp. Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Blade Holder Material | Nylon-Natural |
| Blade Material | Solid Brass |
| Ground Contact Blade Material | .040" (1.0) Copper Alloy |
| Body Material | Impact Modified Nylon |
| Terminal Screw Material | #8-32 Brass /Ni plated for neutral |
| Flammability | Rated HB or better UL94 |
| Retainer Material | Polycarbonate-Clear |
| Series | Insulgrip |
| Wattage | 3750 W |
| Industry Standard(s) | CSA Certified to C22.2 No. 42 File 280 NEMA® WD-6 Compliant UL Listed to UL498 File E1706 |
| Environmental Conditions | Ribbed Nylon Housing Is Impact and Chemical Resistant |
| Horsepower - Maximum | 1.5 |
| Style | Standard |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
