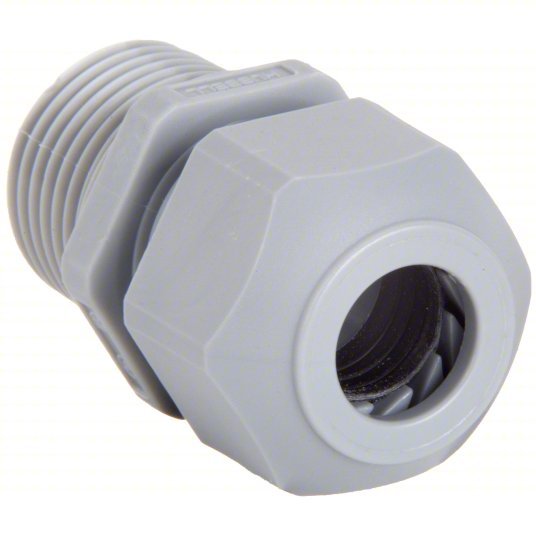

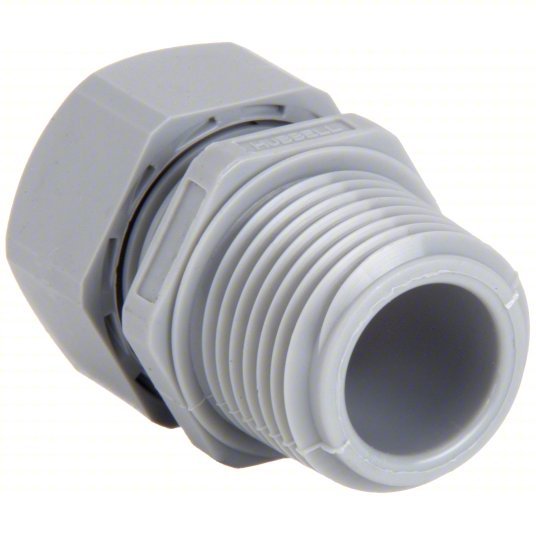

Hubbell SEC50GA Liquid Tight Cord Connector Nylon, 1/2 in MNPT, 0.17 in to 0.45 in, Gray
Original price
$5.19
-
Original price
$5.19
Original price
$5.19
$5.19
-
$5.19
Current price
$5.19
| Style - Connector | Straight |
| Male/Female | Male |
| Material | Nylon |
| Color | Gray |
| Box Connection | 1/2 in MNPT |
| For Use With | Kellems Wire Management |
| Material - Cord Connector | Nylon |
| Material - External Strain Relief | No External Strain Relief |
| Gland Color Code | No Code |
| Liquid Tight / Dust Tight | Liquid Tight |
| Number of Cords | 1 |
| Standards | CSA C22.2 No. 18, UL 514B, VDE |
| Connector Type | Straight |
| Body Color - Cord Connector | Gray |
| Insulated | Yes |
| Hazardous Location Rating | Not Rated |
| Strain Relief Type | No External Strain Relief |
| Maximum Operating Temperature | 225 Degrees F |
| Thread Gender | Male |
| Connection Orientation | Straight |
| For Minimum Cable OD | 0.17 in |
| Liquid Tight | Yes |
| Compatible Conduit Type | Liquid Tight Cord Connector |
| Grommet Color Code | No Code |
| Body Material | Nylon |
| Collar Material | Nylon |
| Minimum Operating Temperature | -22 Degrees F |
| Series | Low Profile NPT |
| IP Rating | IP66 |
| Environmental Rating | Not Flammable |
| Body Color | Gray |
| Thread Type | NPT Thread |
| For Maximum Cable OD | 0.45 in |
| Thread-Type | NPT Thread |
| Cord Connector Body Style | Straight Male |
| Operating temperature | -30°C to 100°C |
| Material/Style | Nylon Low Profile |
| Product Type | Cord Connectors |
| Certifications | UL 514B, CSA C22.2 No. 18 |
| Sealing Grommet Material | Neoprene |
| Protection Class | IP68 |
| Flammability | UL 94 V-0 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Nema Rating | IP66 |
| Type | Connector |
| Application | Straight Male Connector |
| Performance | Environmental - Flammability - UL 94V-2 Environmental - Operating Temperatures - -22°F to 225°F (-30°C to 107°C) Environmental - Protection Class - IP66 Suitability |
| Material - Mounting Hardware | Locknut or Tapped Opening |
| Item Type | Low Profile Cord Connectors |
| Conductor Range | 0.17-0.45 in (4.3-11.4 mm) |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| Industry Standard(s) | UL Listed |
| Temperature Rating | Minimum -22 Deg F to 225 Deg F (-30 Deg C to 107 Deg C) |
| Number Of Conductors | Single |
