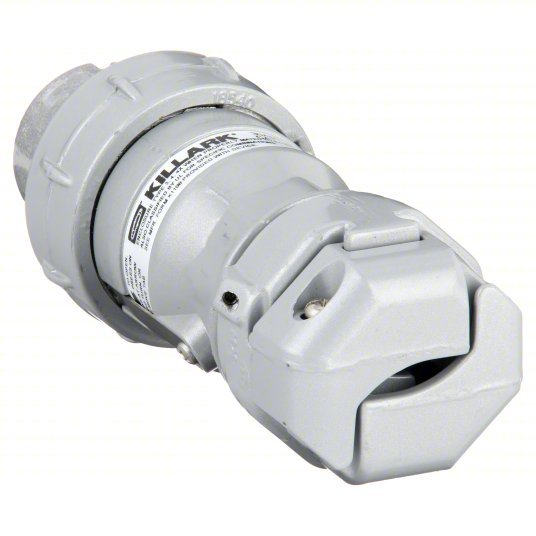

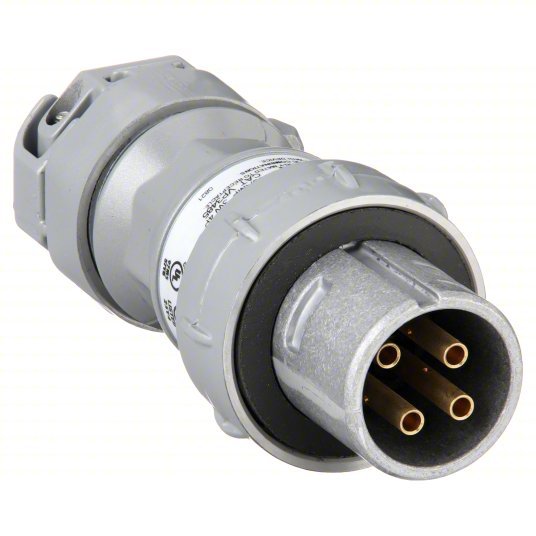

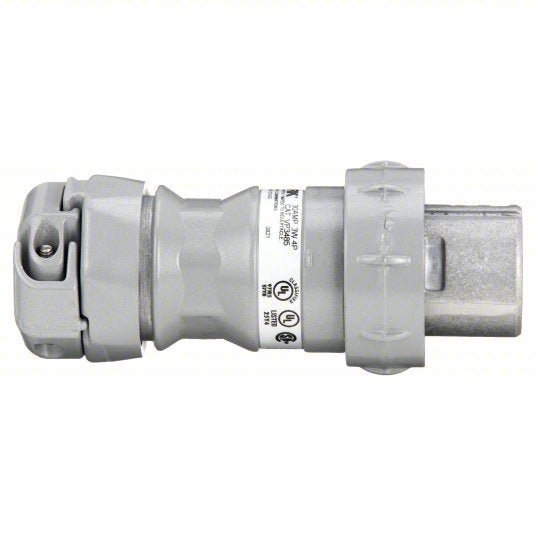

Hubbell VP3485 Pin and Sleeve Plug 30 A, 250V DC/600V AC, Style 2 Grounding, CSA Certifications/UL Listed

Pin and Sleeve Plug, Current Rating 30 A, Hazardous Location Specification Class I, Div 1 and 2, Group A, B, C, D, Horsepower Rating Not Applicable, Housing Color Gray, IP Rating Not Rated, Number of Poles 3, Number of Wires 3, Phase Three, Voltage Rating 250V DC, 600V AC, Wire Connection Type Screw Terminals, Cap Type Not Applicable, Connection Orientation Straight, Face Diameter 1.875 in, Grounding Grounded, Grounding Style Style 2, Housing Material Copper-Free Aluminum

Amps - Plugs and Receptacles	30 A
Number of Poles	3
Number of Wires	3
Switch Rated	No
Grounding Style	Style 2
Finish	Epoxy Polyester
Standards	CSA Certified LR111846, UL E10757
Voltage	600V AC/250V DC
Material	Copper Free Aluminum with Electro Statically Applied Epoxy, Powder Finish
NEMA Rating	4x
Amps	30 A
Item	Pin and Sleeve Plug
Features	Box Terminals with Gripper Ribs Securely Clamp Conductors, Octagonal Body Style, Suitable for Type P Marine Cable
Phase	Three
Wire Connection Type	Screw Terminals
Current Rating	30 A
Voltage Rating	250V DC, 600V AC
Reverse Service	No
Shrouded	Yes
Housing Material Finish	Baked Powder Epoxy/Polyester Coated
Hazardous Location Specification	Class I, Div 1 and 2, Group A, B, C, D
For Environment	Cold, Corrosive, Hazardous Location, Marine, Wet
Connection Orientation	Straight
Power Indicating Light	No
Housing Material	Metallic
Housing Color	Gray
Market	Industrial
NEMA Enclosure Rating	4X
IP Rating	Not Rated
Grounding	Grounded
For Location	Indoor, Outdoor
Type	Pin & Sleeve
Hz	50-400 Hz
Amperage Rating	30 A
Series	VersaMate
Style	Style II
Grommet Range	0.55-1.20
Finish Type	Baked Powder Epoxy/Polyester Finish
Frequency Rating	50-400 Hz
Application	Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Reï ¬neries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities
