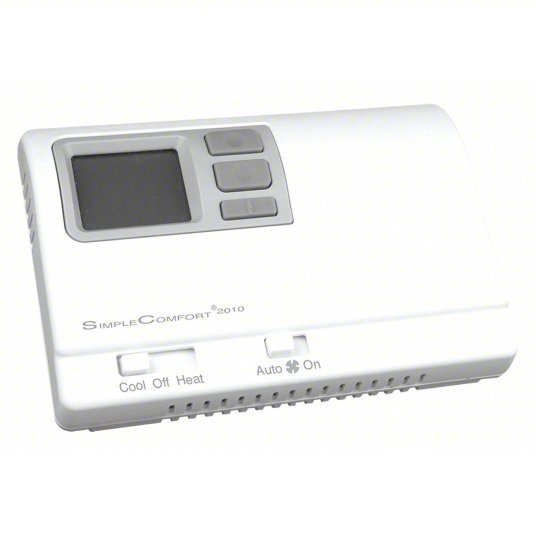

ICM SC2010L Low Voltage Thermostat Heat and Cool, Manual, Auto/On, Cool-Heat-Off, Cool-Heat-Off/Auto-On
Original price
$101.92
-
Original price
$101.92
Original price
$101.92
$101.92
-
$101.92
Current price
$101.92
Low Voltage Thermostat, Heat and Cool, Manual, Compatible System Type Heat and Cool, Slide Switch, Dehumidification Control No, Dual Transformer Compatible Yes, Fan Settings Auto, On, Humidification Control No, Key Features Freeze Protection, High Temperature Protection, Key Pad Lockout Yes, Mounting Direction Horizontal, Number of Cooling Stages - Conventional System 1, Number of Heating Stages - Conventional System 1, Overall Depth 1 1/8 in, Overall Height 3 3/4 in, Overall Width 5 1/2 in
| Voltage | 18/30VAC |
| Stages Heat | 1 |
| Color | White |
| Control Range | 45 Degrees F to 90 Degrees F |
| System Switching | Heat-Cool-Off |
| Stages Cool | 1 |
| Dual Transformer Compatible | Yes |
| Power Method | Dual |
| 750mV Compatible | No |
| Fan Switching | Auto-On |
| Dehumidification Control | No |
| Humidification Control | No |
| Occupancy Sensor | No |
| Filter Indicator | No |
| Low Battery Indicator | No |
| Terminal Designations | RC,RH,C,W,Y,O,B,G |
| Temporary Program Override | No |
| Temporary Temperature Hold | No |
| For Use With | Heating and Cooling |
| Programmable Fan | No |
| Key Pad Lockout | Yes |
| Features | Keypad Lockout, Freeze Protection, 4 or 5 Wire Compatible, Field Adjustable Calibration, East Access Terminal Block, Permanent Memory, ICM Patented Thermal Intrusion Barrier |
| Automatic Changeover | No |
| Display | Digital |
| Battery Backup | Yes |
| Batteries Included | Yes |
| Temperature Limiting | No |
| Includes | Operation and Application Guide, SC2010L Thermostat on Base, Cover |
| Control Type | Slide Switch |
| Programming Capability | Not Programmable |
| Number of Cooling Stages - Conventional System | 1 |
| Changeover Type | Manual |
| Mounting Direction | Horizontal |
| Thermostat Type | Low Voltage |
| Application | Heat and Cool |
| Compatible System Type | Heat and Cool |
| Number of Heating Stages - Conventional System | 1 |
| Electrical Connection Type | Hardwired |
| Temperature Sensitivity | +/-1 Degrees F |
| Battery Type | (2) AAA Batteries |
| Temperature Control Range | 45 Degrees to 90 Degrees F |
| System/Fan Settings | Cool-Heat-Off/Auto-On |
| System Settings | Cool-Heat-Off |
| Fan Settings | Auto, On |
| Millivolt Compatible | No |
