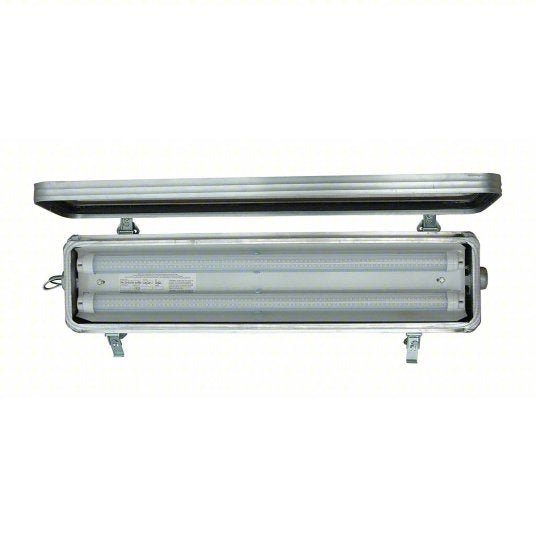

Larson HAL-24-2L-LED-SFC Hazardous Location Lighting Fixture 120/208/240/277V AC, For 14 W Max. Bulb Watt, For 2 Bulbs, T8

Hazardous Location Lighting Fixture, Hazardous Location Fixture Type, Integrated LED Lamp Type, Lamp Quantity 2, Bulb Designation T8-LED, 2FT, Lamp Watts 15 W, Suggested Lamp Item No. LEDT-14W-V1, Fixture Wattage 28, Voltage 120/277V AC, 50,000 hr LED Life, Rig Light, Vibration Resistant, Yes Lamp Included, Ambient Temp. Range -40 Degrees to 149 Degrees F, Housing Material Aluminum, High Gloss Housing Finish, Lens Material Acrylic, Finish Gray, Surface/Suspended Mounting, Length 27 15/16 in

Fixture Type	Hazardous Location
Fixture Wattage	28
Lamp Watts	15 W
Lamp Type	Integrated LED
Ambient Temp. Range	-40 Degrees to 149 Degrees F
Voltage	120/277V AC
Lamp Included	Yes
Mounting	Surface/Suspended
Finish	Gray
Dimmable	No
Suggested Lamp Item No.	LEDT-14W-V1
Emergency Battery Backup	No
Fixture Housing Color	Gray
Fixture Temp. Range	-30 Degrees to 85 Degrees C
Item - Decorative and Surface Mount Fixtures	LED Surface Mount Fixture
Lighting Certification	Unrated
Color Temperature	5600K
Includes	3/4 in NPT Hub Size, LED Bulbs, Wall/Ceiling/Flat Surface Mounting Brackets
Light Color	Daylight
Fixture Warranty	3 yr.
Housing Material	Aluminum
Lighting Technology	LED
Description/Special Features	50,000 hr LED Life, Rig Light, Vibration Resistant
Bulb Designation	T8-LED, 2FT
Lamp Watts - Fixtures	15.0 W
Fixture Voltage	120/208/240/277V AC
Standards	UL Certified for US and Canada, Class I Div 2 Groups A,B,C,D, UL 1598A Marine Type, UL 595 Outdoor Marine Type (Saltwater)
Fixture Rated Life	50,000 hr
Lens Material	Acrylic
Fixture Housing Material	Fiberglass
Number of Light Bars	2
Lamp Quantity	2
Housing Finish	High Gloss
Max. Fixture Wattage	30 W
Color Rendering Index	75
Lumens Per Watt	90.0
Fixture Type - Decorative and Surface Mount Fixtures	Hazardous Location Strip Light
Lumens	4,320 lm
Lumens per Watt	90 lm/W
Min. Ambient Temp.	-40 Degrees F
Mounting Location	Surface
For Bulb Type	LED
CA Title 24 Compliant	Yes
BAA Compliant	Yes
Series	HAL-24-2L-LED
For Bulb Shape	T8
Ingress Protection Rating	67
Safety Rating	Class I, Division 2, Groups A, B, C, D
For Number of Bulbs	2
Max. Ambient Temp.	149 Degrees F
UL/CSA/ETL Listed	UL 1598 Listed, UL 595 Listed, UL Listed
For Max. Bulb Wattage	14 W
Temperature Code	T4A
Number of Bulbs	2
