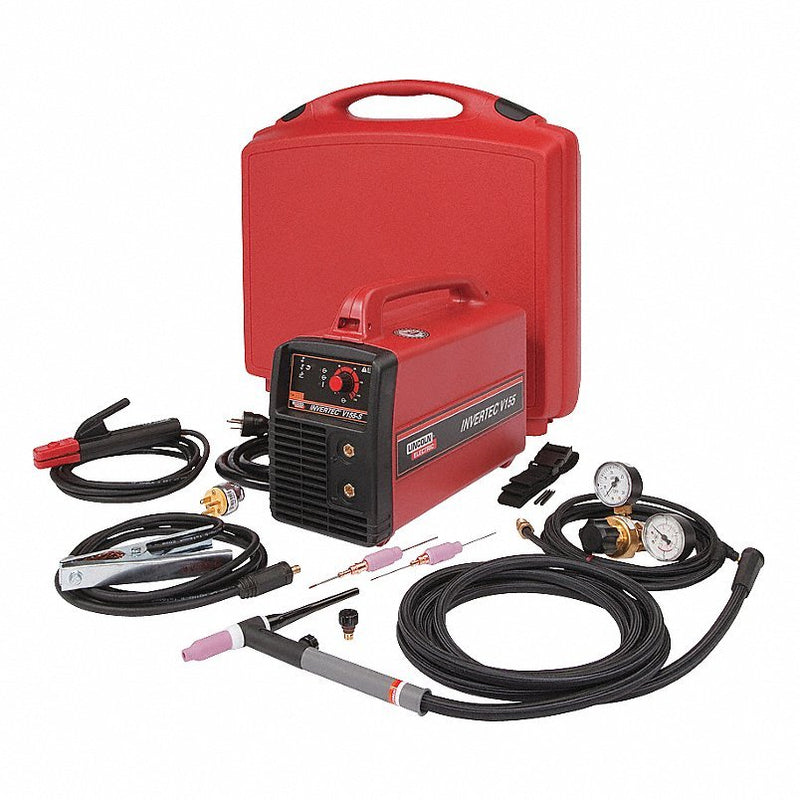

Lincoln K2606-1 TIG Welder: Invertec V155-S, DC, Stick/TIG Pack, 155 A
Original price
$3,289.93
-
Original price
$3,289.93
Original price
$3,289.93
$3,289.93
-
$3,289.93
Current price
$3,289.93
TIG Welder, For Material Type Steel, For Maximum Material Thickness 3/8 in (Aluminum), 3/8 in (Steel), For Minimum Material Thickness 0.004 in (Steel), 0.012 in (Aluminum), Input Frequency 50/60 Hz, Phase Single-Phase, Polarity DC, Series Invertec V155-S, Stick Welding Maximum Output Current 155 A, Stick Welding Minimum Output Current 5 A
| Welder Industrial Class | Light |
| Item | TIG Welder |
| Welding Processes | Stick, TIG |
| Mild Steel - Material Thickness | 0.004 in to 3/8 in |
| Aluminum - Material Thickness | 0.012 in to 3/8 in |
| Input Voltage | 120/230V AC |
| Rated Output | 155A @ 16V, 30% |
| Welder Max. Output Amps | 155 |
| Welder Min. Output Amps | 5 |
| Welder Duty Cycle | 100 % |
| Series | V155-S |
| Application | Automotive, Farm, Light Duty Metal Fabrication, Maintenance |
| Welded Material | Steel |
| Features | Auto Adaptive Arc Force, Auto Restore Fuse, Dent-Resistant Case Rated for Outdoor Use, Dual Stick Mode |
| Welder Input Hz | 50/60 |
| Input (Amps) | 22.8/28.8 |
| Power Source Weight | 15 lb |
| Includes | (3) Alumina Nozzles, (3) Collet Bodies, (3) Collets, (3) Tungstens, 10 ft Cable, 120/230V Input Cord 6.6 ft, 120V 20A Plug, Back Cap, Carry Suitcase, Gas Regulator, Shoulder Strap, Stick Electrode Holder, TIG Torch with Ultra-Flex(TM) Cable ,Twist Mate(TM) Adapter |
| Welder Input Phase | 1 |
| Polarity | DC |
| Welding Mode | CC |
| Welder Kit Type | Stick/TIG Package |
| Weight | 30 lb |
| Color | Red |
| Stick Welding Output @ Duty Cycle | 100 A @ 24 V, 100% (230 V), 100 A @ 24 V, 30% (120 V), 145 A @ 25.8 V, 30% (230 V), 75 A @ 23 V, 100% (120 V) |
| Kit Includes | Case, Flow Gauge/Regulator & Gas Hose, Stick Electrode Holder with Cable, TIG Torch, Work Cable with Clamp |
| TIG Welding Maximum Output Current | 155 A |
| Plug Type | 5-15P |
| Input Voltage (Nominal) | 120V, 240V |
| Rated Output at Duty Cycle (TIG) | 100 A @ 100%, 100 A @ 30%, 145 A @ 30%, 75 A @ 100% |
| Input Frequency | 50/60 Hz |
| For Material Type | Steel |
| Stick Welding Maximum Output Current | 155 A |
| Open Circuit Voltage | 75V |
| For Maximum Material Thickness | 3/8 in (Aluminum), 3/8 in (Steel) |
| Max. Amperage Range (TIG) | 150 A - 300 A |
| TIG Welding Output @ Duty Cycle | 100 A @ 24 V, 100% (230 V), 100 A @ 24 V, 30% (120 V), 145 A @ 25.8 V, 30% (230 V), 75 A @ 23 V, 100% (120 V) |
| TIG Welding Minimum Output Current | 5 A |
| Remote Control | Remote Control Not Included |
| Power Cord Included | Yes |
| Amperage Range | 5 to 155 A |
| TIG Arc Start Feature | Lift Arc Start |
| For Minimum Material Thickness | 0.004 in (Steel), 0.012 in (Aluminum) |
| Stick Welding Minimum Output Current | 5 A |
| Model | K2606-1 |
| Process | Stick Welding (SMAW), TIG Welding (GTAW) |
| brand-mfr model | LINCOLN ELECTRIC - K2606-1 |
| Process (Merch) | GTAW, SMAW |
| Welder Type (Merch) | Stick/TIG Package |
| Package Quantity | 1 |
