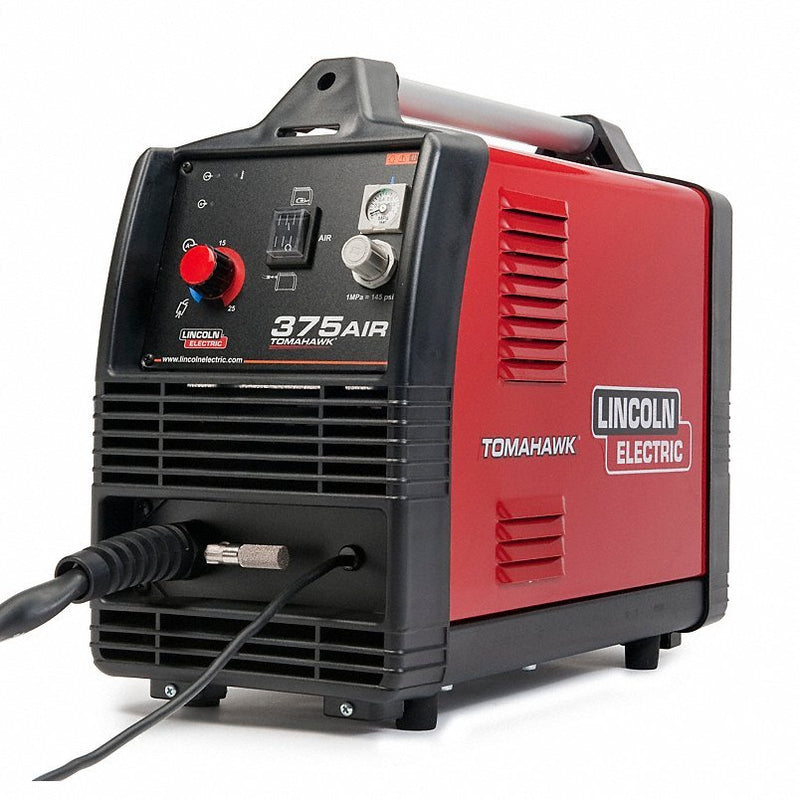

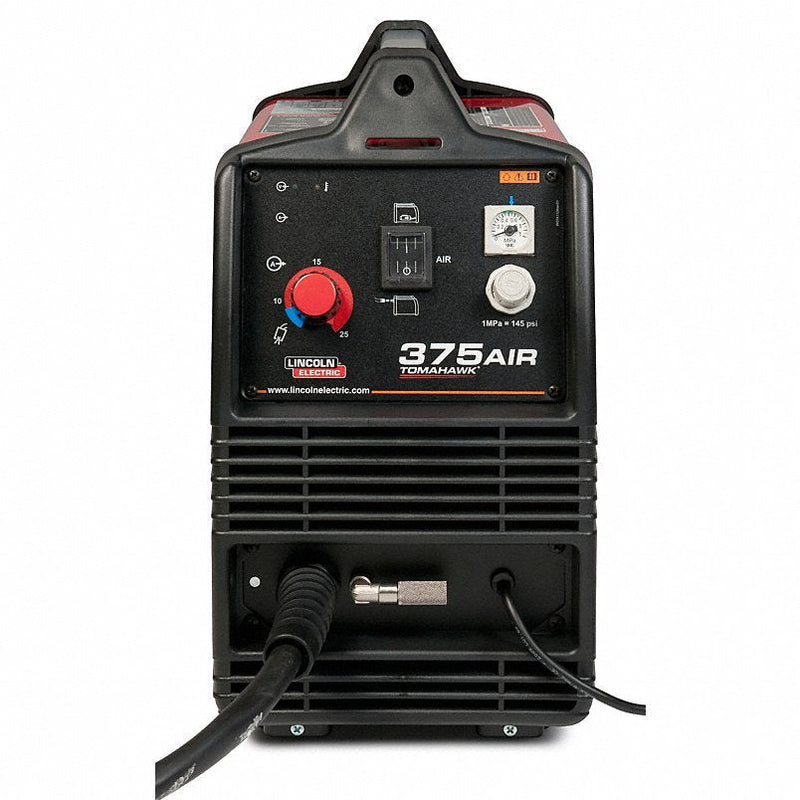

Lincoln K2806-1 Plasma Cutter, 10-25A, Inverter, 70 PSI
Lincoln K2806-1 Plasma Cutter, 10-25A, Inverter, 70 PSI
Lincoln K2806-1 Plasma Cutter, 10-25A, Inverter, 70 PSI
Lincoln K2806-1 Plasma Cutter, 10-25A, Inverter, 70 PSI
Lincoln K2806-1 Plasma Cutter, 10-25A, Inverter, 70 PSI
Lincoln K2806-1 Plasma Cutter, 10-25A, Inverter, 70 PSI

Lincoln K2806-1 Plasma Cutter, 10-25A, Inverter, 70 PSI

$2,671.10 - $2,671.10
$2,671.10
$2,671.10 - $2,671.10
$2,671.10

Please confirm stock prior to order. Plasma Cutter with Built-In Air Compressor, Cutting Configuration Plasma Cutting, Effective Input Current 21.7 A @ 208/230 V (Single-Phase), For Material Type Aluminum, Brass, Copper, Mild Steel, Stainless Steel, For Maximum Material Thickness 1/2 in, For Minimum Material Thickness 5/16 in, Input Frequency 60 Hz, Input Voltage 208 V AC, 230 V AC, Max. Input Current 21.7 A @ 208/230 V (Single-Phase), Open Circuit Voltage 460 V DC, Phase Single-Phase, Plasma Cutter Model K2806-1

Item Plasma Cutter with Built-In Air Compressor
Application Metal Cutting
OCV 460V DC
Input (Amps) 21.7A
Series Tomahawk 375 Air
Cutting Capacity (In.) 1/2 in
Rated Output 2/5 A
Design Inverter
PSI 70

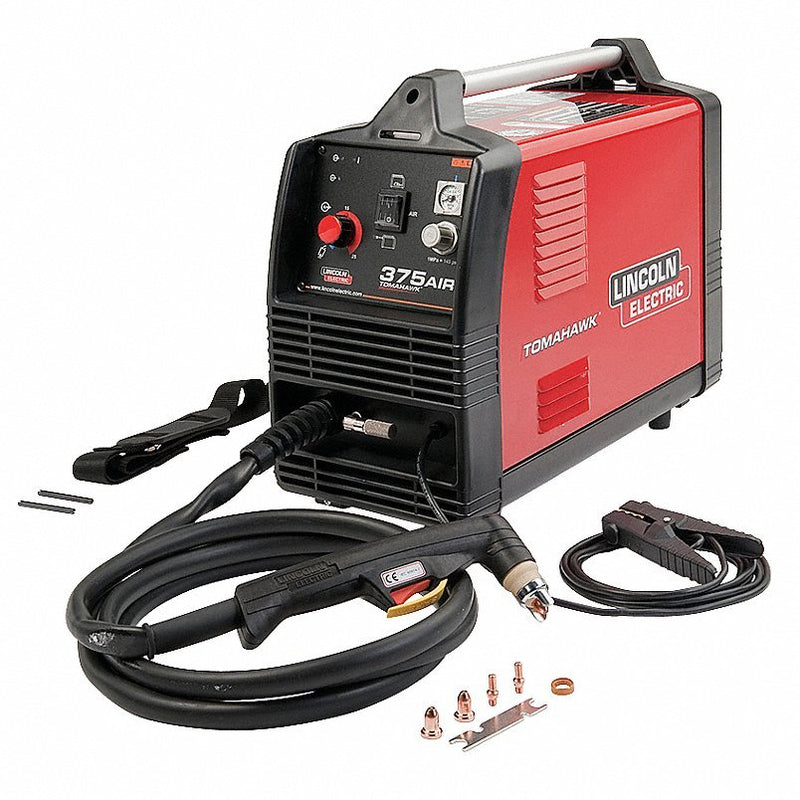

Includes Air Regulator, Internal Air Compressor, Internal Water Separator, Lincoln Electric LC25 Torch with 10 ft Cable, Pressure Gauge, Shoulder Strap and Input Power Cord, Spare Consumables, Work Clamp and Cable
Duty Cycle 100 %
Input Voltage 208 V AC, 230 V AC
Plasma Cutting Output @ Duty Cycle 13 A @ 85.2 V, 100%, 18 A @ 87.2 V, 60%, 25 A @ 90 V, 35%
Open Circuit Voltage 460 V DC
Phase Single-Phase
Max. Amperage Range Less than 50 A
Max. Input Current 21.7 A @ 208/230 V (Single-Phase)
Standards CSA, ISO
Plasma Torch Type Handheld
Plasma Cutter Model K2806-1
For Material Type Aluminum, Brass, Copper, Mild Steel, Stainless Steel
Input Voltage (Nominal) 208V
Plasma Torch 10 ft Handheld
Plasma Gas Type Air
Maximum Output Current 25 A
Input Frequency 60 Hz
Cutting Configuration Plasma Cutting
Plasma Cutter Type Plasma Cutter with Built-In Air Compressor
Color Red
Rated Output at Duty Cycle 13 A @ 100%, 18 A @ 60%
Maximum Pressure - Air Compressor 80 psi
Plug Type 6-50P
For Maximum Material Thickness 1/2 in
Welding Processes Plasma Cutting
Effective Input Current 21.7 A @ 208/230 V (Single-Phase)
Required Air Flow 2.1 cfm
For Minimum Material Thickness 5/16 in
Plasma Cutting Minimum Output Current 10 A
Weight 18.14 kg
Process Plasma Cutting
Package Quantity 1
