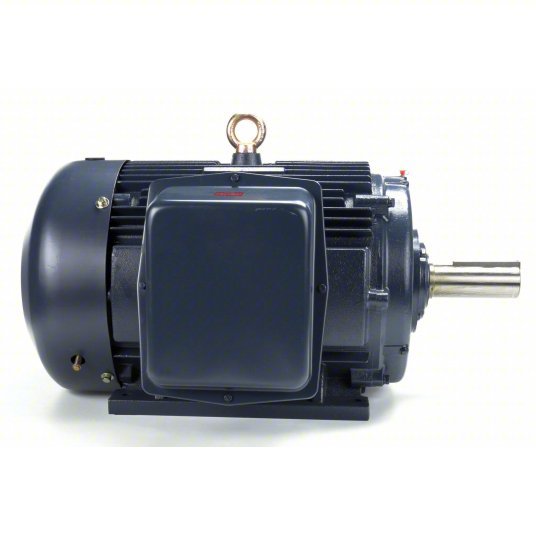

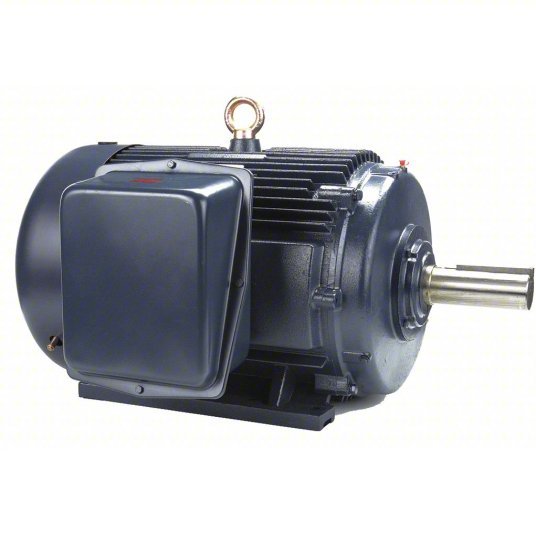

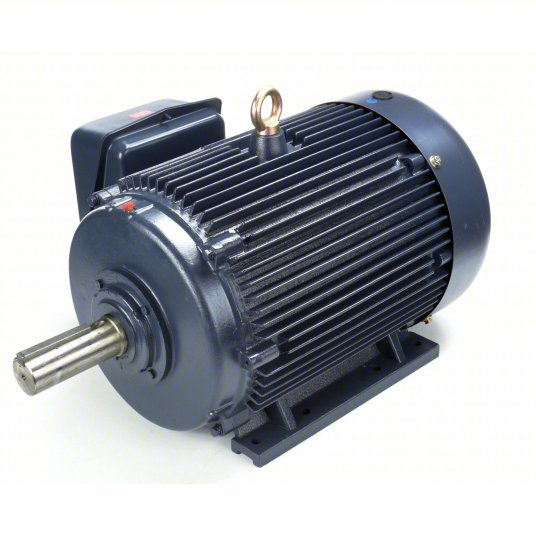

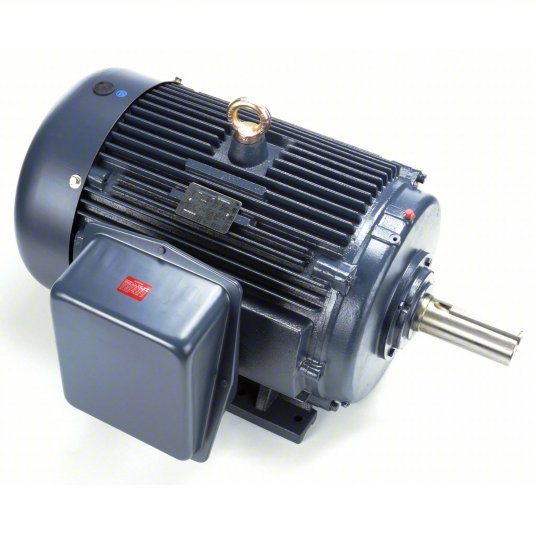

Marathon 405TTFCD6036 3-Phase General Purpose Motor, 100 HP, 405T Frame, 230/460V AC Voltage, 1785 rpm Nameplate RPM

General Purpose Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 100 HP, Nameplate RPM 1785 rpm, Frame 405T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 226.0/113.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, Continuous Duty, 1701-1800

HP	100
Nameplate RPM	1785 rpm
Voltage	230/460V AC
Motor Mounting Type	Rigid Base
Full Load Amps	226.0/113.0 A
Frame	405T
Motor Bearings	Ball
Motor Service Factor	1.15
Motor Design	3-Phase
Motor Enclosure Design	Totally Enclosed Fan-Cooled
RPM Range	1701-1800
Phase	Three
No. of Speeds	1
Motor Application	General Application
Motor Shaft Rotation	CW/CCW
Voltage Compatibility	200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz	60 Hz
Ins. Class	F
Max. Ambient Temp.	40 Degrees C
Motor Frame Material	Cast Iron
Motor Mounting Position	Horizontal
Motor Shaft Design	Keyed
Nominal Efficiency	95.4 %
Standards	CSA Certified, UL Listed
CC Number	CC003A
Inverter Rated	Yes
Motor Thermal Protection	None
Includes	Conduit Box
Green Certification or Other Recognition	NEMA Premium(R) Rated
NEMA Design	B
Usable @ 200V	No
Usable @ 208V	No
Weight	1,325 lb
Duty Cycle	Continuous
Capacitor Required	No
Inverter Rating	10:1
