McMaster 4464K741 304 Stainless Steel Threaded Pipe Fitting Low Pressure, Straight Connector, 1/2 NPT Male
Original price
$42.67
-
Original price
$42.67
Original price
$42.67
$42.67
-
$42.67
Current price
$42.67

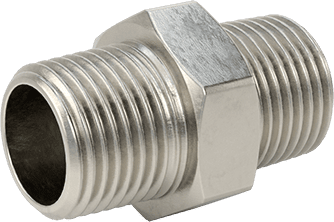

McMaster 4464K741 304 Stainless Steel Threaded Pipe Fitting Low Pressure, Straight Connector, 1/2 NPT Male
|
For Use With
|
Air, Natural Gas, Oil, Steam, Water |
|
Shape
|
Straight |
|
Type
|
Connector |
|
Body Shape
|
Hex |
|
Material
|
304 Stainless Steel |
|
Pressure Class
|
150 |
|
Fabrication
|
Heat Treated |
|
Connection Type
|
Pipe |
|
Connection Style
|
Threaded |
|
Thread Type
|
NPT |
|
Gender
|
Male |
|
Pipe Size
|
1/2 |
|
Length
|
1 43/64" |
|
Hex Width
|
1 1/32" |
|
For Pipe
|
|
|
Schedule
|
40 |
|
Material
|
304 Stainless Steel, 304/304L Stainless Steel |
|
For Flange
|
|
|
Class
|
150 |
|
Material
|
304 Stainless Steel, 304/304L Stainless Steel |
|
Specifications Met
|
ASTM A351 |
|
System of Measurement
|
Inch |
|
Maximum Steam Pressure
|
150 psi @ 350° F |
|
Maximum Pressure
|
300 psi @ 72° F |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
Vietnam |
|
Schedule B
|
730722.1000 |
|
ECCN
|
2B999 |
Use these fittings in a low-pressure pipe line.
304 stainless steel fittings have very good corrosion resistance.
