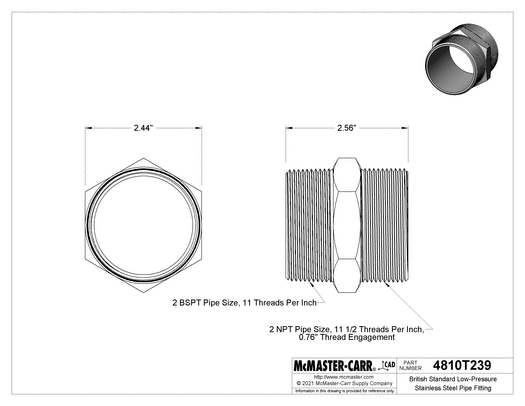

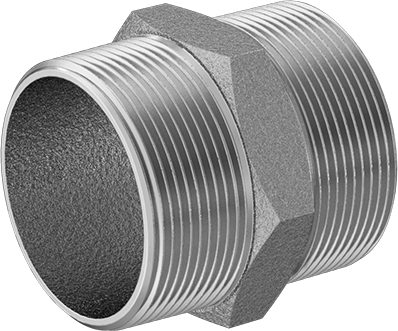

McMaster 4810T239 British Standard Low-Pressure 304 Stainless Steel Pipe Fitting Straight Adapter, 2 BSPT Male x NPT Male
Original price
$126.23
-
Original price
$126.23
Original price
$126.23
$126.23
-
$126.23
Current price
$126.23
Use these fittings in a low-pressure pipe line.
304 stainless steel fittings have very good corrosion resistance.
|
For Use With
|
Air, Natural Gas, Oil, Steam, Water |
|
Shape
|
Straight |
|
Type
|
Adapter |
|
Body Shape
|
Hex |
|
Material
|
304 Stainless Steel |
|
Pressure Class
|
150 |
|
Fabrication
|
Heat Treated |
|
Connection Type
|
Pipe |
|
Connection Style
|
Threaded |
|
Connection
|
BSPT Male × NPT Male |
|
Pipe Size
|
2 |
|
Length
|
2 9/16" |
|
Hex Width
|
2 7/16" |
|
For Pipe
|
|
|
Schedule
|
40 |
|
Material
|
304 Stainless Steel, 304/304L Stainless Steel |
|
For Flange
|
|
|
Class
|
150 |
|
Material
|
304 Stainless Steel, 304/304L Stainless Steel |
|
Specifications Met
|
ASME B1.20.1, DIN EN 10226 |
|
System of Measurement
|
Inch |
|
Maximum Steam Pressure
|
150 psi @ 350° F |
|
Maximum Pressure
|
300 psi @ 72° F |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
Peoples Republic of China |
|
Schedule B
|
730729.0000 |
|
ECCN
|
2B999 |
