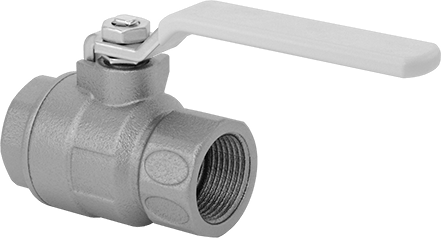

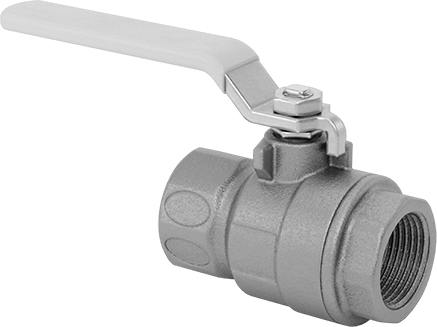

McMaster 5754T32 Bronze Body Full Port On/Off Valve with Lever Handle 3/4 NPT Female x 3/4 NPT Female
Use these valves in general purpose applications, such as those with water, oil, air, and inert gas.
Bronze valves are stronger and more durable than brass valves for a longer service life.
Full-port valves do not restrict flow.
Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.
Lever handles give you the most leverage for quickly opening and closing valves with minimal effort.
|
Pipe Size
|
3/4 |
|
Flow Coefficient (Cv)
|
36 |
|
Maximum Pressure
|
600 psi @ 100° F |
|
Maximum Steam Pressure
|
150 psi @ 365° F |
|
Temperature Range
|
-20° to 450° F |
|
Vacuum Rating
|
29 in. of Hg |
|
Port Type
|
Full |
|
End-to-End Length
|
2 11/16" |
|
Ball Material
|
Brass |
|
Valve Function
|
On/Off |
|
Valve Type
|
Ball |
|
Activation
|
Manual |
|
Valve Operation
|
Handle |
|
Handle Style
|
Lever |
|
Handle Type
|
Standard |
|
Fitting Type
|
Connector |
|
Connection Type
|
Pipe |
|
Connection Style
|
Threaded |
|
Gender
|
Female × Female |
|
Thread Type
|
NPT |
|
For Use With
|
Argon, Helium, Krypton, Neon, Oil, Steam, Water, Xenon |
|
Body Material
|
Bronze |
|
Seal Material
|
PTFE Plastic |
|
Seat Material
|
PTFE Plastic |
|
Packing Material
|
PTFE Plastic |
|
Shape
|
Straight |
|
Overall
|
|
|
Height
|
2 23/32" |
|
Length
|
5 3/16" |
|
Chemical Resistance (Excellent)
|
Argon, Helium, Krypton, Neon, Oil, Steam, Water, Xenon |
|
Warning Message
|
Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency. |
|
RoHS
|
Not Compliant |
|
REACH
|
Not Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
United States |
|
USMCA Qualifying
|
Yes |
|
Schedule B
|
848180.1085 |
|
ECCN
|
EAR99 |
