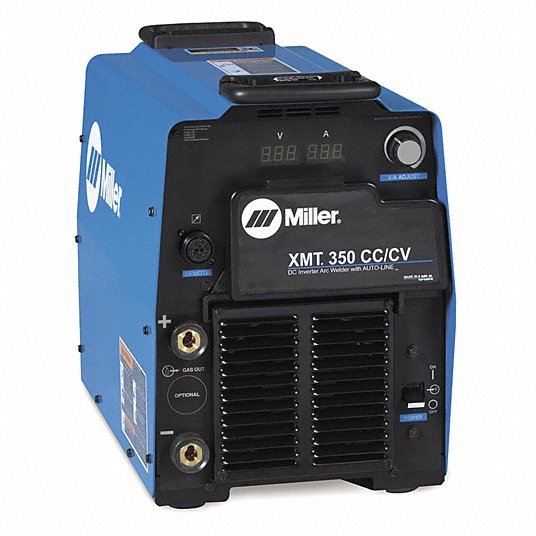

Miller 907161 Multiprocess Welder, XMT(R) 350, Phase Single; Three , 208 to 575V AC , 350A @ 34V DC, 60%
Original price
$9,150.79
-
Original price
$9,150.79
Original price
$9,150.79
$9,150.79
-
$9,150.79
Current price
$9,150.79
Multiprocess Welder, Series XMT 350 CC/CV, Input Voltage 208V AC, 220/230/240V AC, 380/400V AC, 440/460/480V AC, 575V AC, Phase Single-/Three-Phase, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 425 A, TIG Welding Maximum Output Current 425 A, MIG Welding Maximum Output Current 425 A
Underwater Welding Article by Miller: Multi-Process XMT® Inverters Provide Portability, Steady Arc in Underwater Welding Application | MillerWelds
| Item | Multiprocess Welder |
| Series | XMT(R) 350 |
| Phase | Single; Three |
| Input Voltage | 208 to 575V AC |
| Function | MIG, Air Carbon Arc Cutting and Gouging, Flux-Cored, Stick, TIG |
| Rated Output | 350A @ 34V DC,60% |
| Features | Output Connector Choices, Power Management Technology, Standard 14-Pin Receptacle, Welder Friendly Control Panel |
| Application | Aerospace, Boat/Yacht, Construction, Heavy Equipment Manufacturing, High Purity Processing, Infrastructure, Manufacturing, Railcar, Shipbuilding |
| Input (Amps) | 40.4 |
| OCV | 75 |
| Includes | Power source only |
| Hz | 50/60 |
| Standards | CSA |
| For Wire Type | Aluminum, Flux-Cored, Solid |
| Polarity | DC |
| Rated Output at Duty Cycle (Stick) | 300 A @ 60% |
| Stick Welding Minimum Output Current | 5 A |
| For Material Type | Aluminum, Specialty Metals, Stainless Steel, Steel |
| TIG Welding Maximum Output Current | 425 A |
| MIG Welding Output @ Duty Cycle | 300 A @ 32 VDC, 60%, 350 A @ 34 VDC, 60% |
| Stick Welding Output @ Duty Cycle | 300 A @ 32 V, 60%, 350 A @ 34 V, 60% |
| Max. Input Current | 40.4 A @ 208V AC (Three-Phase), 60.8 A @ 208V AC (Single-Phase) |
| Welder Kit Type | Power Source Only |
| Max. Amperage Range (Stick) | Greater than 300 A |
| Max. Amperage Range (MIG) | Greater than 300 A |
| Weight | 80 lb |
| Welding Mode | CC/CV |
| TIG Welding Minimum Output Current | 5 A |
| MIG Welding Minimum Output Current | 5 A |
| MIG Welding Maximum Output Current | 425 A |
| Input Voltage (Nominal) | 208V, 400V, 460V, 575V |
| Stick Welding Maximum Output Current | 425 A |
| TIG Welding Output @ Duty Cycle | 300 A @ 32 V, 60% (1-Phase), 350 A @ 34 V, 60% (3-Phase) |
| Plug Type | Bare Leads |
| TIG Arc Start Feature | Lift Arc Start |
| Color | Blue |
| Remote Connection Type | 14-Pin (Miller) |
| Open Circuit Voltage | 75 V DC |
| Kit Includes | Power Source Only |
| Max. Amperage Range (TIG) | Greater than 300 A |
| Input Frequency | 50/60 Hz |
| Model | 907161 |
| Process | Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW) |
| brand-mfr model | MILLER ELECTRIC - 907161 |
| Package Quantity | 1 |
