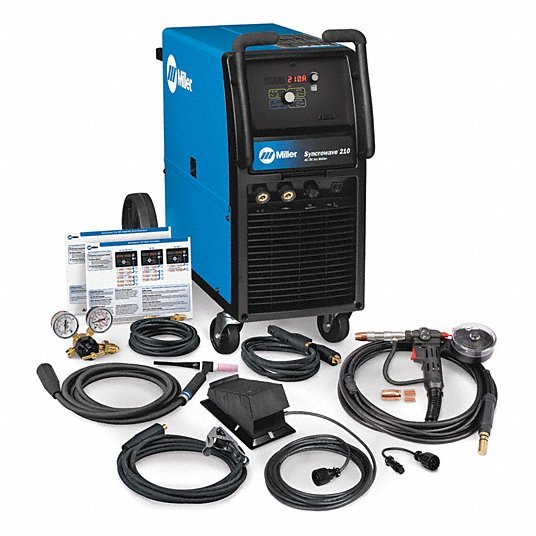

Miller 951684 TIG Welder Syncrowave 210, AC/DC, Stick/TIG Pack w/Foot Control, 150 A/210 A

Miller 951684 TIG Welder Syncrowave 210, AC/DC, Stick/TIG Pack w/Foot Control, 150 A/210 A

$5,558.99 - $5,558.99
$5,558.99
$5,558.99 - $5,558.99
$5,558.99
TIG Welder, For Material Type Aluminum, Stainless Steel, Steel, For Maximum Material Thickness 1/4 in (Aluminum), 1/4 in (Steel), For Minimum Material Thickness 0.020 in (Aluminum), 0.020 in (Steel), Input Frequency 50/60 Hz, Max. Input Current 20.5 A @ 115V AC (Single-Phase), Phase Single-Phase, Polarity AC/DC, Series Syncrowave 210, Stick Welding Maximum Output Current 150 A, Stick Welding Minimum Output Current 20 A
Item TIG Welder
Series Syncrowave(R)
Phase 1
Input Voltage 110/115/120/208/220/230/240V AC
Function AC/DC TIG, DC Stick, Flux-Cored, MIG, Pulsed TIG
Rated Output 125A @ 15V
Amps AC 5-210ADC
Aluminum - Material Thickness 0.020 in to 1/4 in
Features 5A TIG Capability, 6010 Stick Electrode Capability, Auto-Set(TM) MIG, Built-In Running Gear, Fan-on-Demand(TM),Heavy Duty Foot control, Lowe Power Draw, Pro-Set(TM) TIG
Welding Processes DC TIG, Flux Core, MIG, Stick
Application Automotive Repair, Hobbyist, Light Manufacturing, Light Metal Fabrication, Maintenance/Repair Operations, Vocational Training
Output Range 5 to 210A DC
Mild Steel - Material Thickness 0.020 in to 1/4 in
Duty Cycle 60%
Includes 10 ft (3 m) primary cord with MVP(TM) plugs for 120 V (219261) and 240 V (219258), 12 ft (3.8 m) stick electrode holder with Dinse style connector, 12 ft (3.8 m) Weldcraft(TM) A-150 TIG torch with Dinse style connector, 12 ft (3.8 m) work cable with clamp and Dinse style connector, 4-Pin to 14-pin connector, Quick Reference Guide, Regulator/flow gauge and gas hose, RFCS-14 HD remote foot control, Spoolmate(TM) 150 Series spool gun (#301 272), Syncrowave(R) 210
OCV 47
Input (Amps) 11.9
Standards ISO 9001
Hz 50/60
Remote Connection Type 14-Pin (Miller)
Welding Mode CC/CV
For Minimum Material Thickness 0.020 in (Aluminum), 0.020 in (Steel)
Open Circuit Voltage 47V DC
Remote Control Foot Control Included
For Maximum Material Thickness 1/4 in (Aluminum), 1/4 in (Steel)
Rated Output at Duty Cycle (TIG) 114 A @ 60%, 125 A @ 60%, 90 A @ 60%, 95 A @ 60%
TIG Arc Start Feature High Frequency Start
Weight 144.5 lb
Stick Welding Output @ Duty Cycle 70 A @ 22.8 V, 60% (115 V), 90 A @ 23.6 V, 60% (230 V)
Max. Amperage Range (TIG) 150 A - 300 A
Kit Includes Flow Gauge/Regulator & Gas Hose, Foot Control, Spool Gun, Stick Electrode Holder with Cable, TIG Torch, Work Cable with Clamp
For Material Type Aluminum, Stainless Steel, Steel
Color Blue
Input Voltage (Nominal) 120V, 208V, 240V
Plug Type 5-15P, 6-50P
Welder Kit Type Stick/TIG Package w/Foot Control
Input Frequency 50/60 Hz
Stick Welding Minimum Output Current 20 A
TIG Welding Minimum Output Current 5 A
Pulse Frequency 0.1 to 150 pulses/second
TIG Welding Output @ Duty Cycle 114 A @ 14.6 V, 60% (230V AC), 125 A @ 15 V, 60% (230V AC), 90 A @ 13.6 V, 60% (115V AC), 95 A @ 13.8 V, 60% (115V AC)
Max. Input Current 20.5 A @ 115V AC (Single-Phase)
Power Cord Included Yes
Stick Welding Maximum Output Current 150 A
Polarity AC/DC
TIG Welding Maximum Output Current 210 A
Model 951684
Process Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Welder Type (Merch) Stick/TIG Package w/Foot Control
Process (Merch) GTAW, GTAW-P, SMAW, GMAW, FCAW
brand-mfr model MILLER ELECTRIC - 951684
Package Quantity 1
