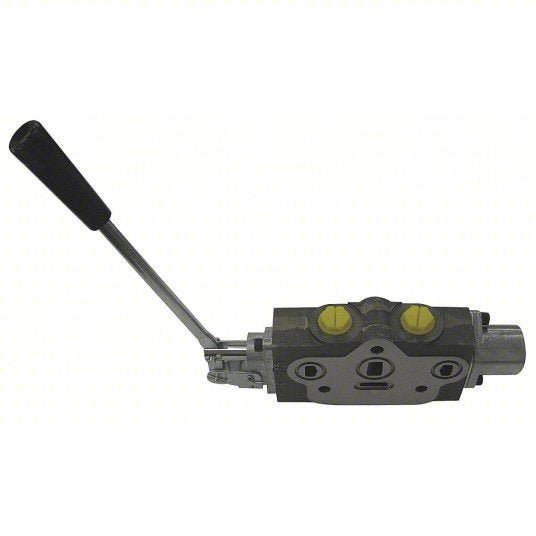

Prince SVW1BA1 Hydraulic Work Section 4-Way/3-Position, Tandem, 12 gpm Max. Flow, #8 SAE Port Size

Prince SVW1BA1 Hydraulic Work Section 4-Way/3-Position, Tandem, 12 gpm Max. Flow, #8 SAE Port Size

$278.49 - $278.49
$278.49
$278.49 - $278.49
$278.49
Hydraulic Work Section, 4-Way/3-Position Valve Ways and Positions, Tandem Center Position - Hydraulic Valves, Max. Flow - Hydraulic Valves 12 gpm, #8 SAE Port Size - Hydraulic Valves, - Design, -, Parallel Circuit Section, Preset Setting (PSI) -, Load Holding Check Valve Type, For Use With Stack Valve
Valve Type - Hydraulic Stack Valves Hydraulic Work Section
Valve Ways and Positions 4-Way/3-Position
Center Position - Hydraulic Valves Tandem
Max. Flow - Hydraulic Valves 12 gpm
Thread Porting #8 ORB (3/4-16) Straight
Way 4
Type Stack Valve
Circuit Section Parallel
Flow Rate (GPM) 12
Position 3
For Use With Stack Valve
Adjustable PSI Range 3000
Center Tandem
Check Valve Type Load Holding
