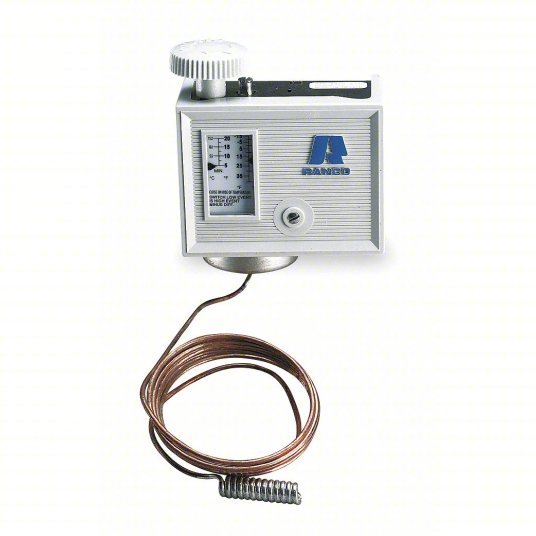

Ranco O10-1409 Temp Control, 0°F to 55°F, SPST, Closes on Rise, 72 in Capillary Lg

Ranco O10-1409 Temp Control, 0°F to 55°F, SPST, Closes on Rise, 72 in Capillary Lg

$169.10 - $169.10
$169.10
$169.10 - $169.10
$169.10
Refrigeration/Freezer Control, Bulb Diameter 3/8 in, Bulb Length 1 3/8 in, Capillary Length 72 in, Capillary Type Capillary with Remote Bulb, Contact Form SPST, Control Temperature - Maximum 55 Degrees F, Control Temperature - Minimum 0 Degrees F, Full Load Current 24/24 A, Includes (7) Adjustment Screws, Locked Rotor Amps 144/144 A, Overall Height 2 3/4 in, Overall Length 3 1/2 in, Pilot Duty Contacts Rating 144 VA, Product Type Temperature Control, Reset Type Automatic Reset, Standards UL
Switch Type Normally Open
Switch Action Closes on Rise
Voltage 120V AC, 240V AC
Full Load Amps 24
Construction Bellows are Laser welded, For Extended Life, Compact Case is Zinc Plated, Pressed Steel, Has a NEMA 1 Non-conductive, Non-corrosive Cover which is Retained by a Captive, Accessible Screw
Item Refrigeration/Freezer Control
Agency Compliance UL Listed
Capillary Type Capillary with Remote Bulb
Temp. Differential High (F) 3 to 20
Pilot Duty Contacts (VA) 144 VA
Type Medium Temp.
Application Suitable for Line or Pilot Duty Cycling of Motors, Compressors or Solenoid Valves
Control Range (F) -15 to 40
Temp. Differential Low (F) 6 to 25
Includes (7) Adjustment Screws
Locked Rotor Amps 144/144 A
Standards UL
Product Type Temperature Control
Reset Type Automatic Reset
Temperature Differential - Minimum 3 Degrees F
Temperature Differential - Maximum 20 Degrees F
Full Load Current 24/24 A
Control Temperature - Maximum 55 Degrees F
Contact Form SPST
Pilot Duty Contacts Rating 144 VA
Control Temperature - Minimum 0 Degrees F
