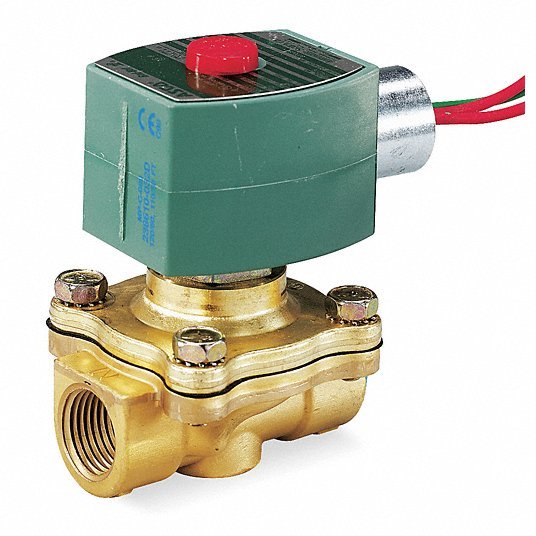

Redhat 8210G055 Solenoid Valve 2-Way, Normally Closed, 1 1/4 in Pipe Size, 120V AC, Watertight, High Flow
Original price
$593.78
-
Original price
$593.78
Original price
$593.78
$593.78
-
$593.78
Current price
$593.78
Solenoid Valve, Valve Ways 2-Way, Valve Starting Configuration Normally Closed, Valve Type High Flow, Nominal Pipe Size 1 1/4 in, Orifice Diameter 1 1/8 in, Body Material Brass, Coefficient of Volume (Cv) 15, Operating Pressure Differential Air/Inert Gas - Maximum 150 psi, Operating Pressure Differential Fuel Gas - Maximum Not Applicable, Seal Material NBR, Voltage 120V AC, Operating Pressure Differential Fuel Oil - Maximum Not Applicable, Coil Enclosure Watertight
| For Media | Air, Inert Gas, Light Oil, Water |
| Valve Ways | 2-Way |
| Valve Starting Configuration | Normally Closed |
| Inlet Connection Type | NPTF |
| Outlet Connection Type | NPTF |
| Voltage | 120V AC |
| Valve Type | High Flow |
| Operation Type | Pilot Operated |
| Seal Material | NBR |
| Operating Pressure Differential - Maximum | 150 psi Air/Inert Gas, 125 psi Light Oil, Water |
| Operating Pressure Differential - Minimum | 0 psi Air/Inert Gas, Light Oil, Water |
| Item | Solenoid Valve |
| Body Material | Brass |
| Coil Enclosure | Without Junction Box, Watertight |
| Coil Insulation Class | F |
| Valve Design | 2-Way/2-Position |
| Electrical Connections | 1/2 in Conduit Hub |
| IP Rating | 66 |
| Application | Air Compressors, Car Wash, Industrial Water Control, Laundry Equipment, Pumps |
| Standards | UL Listed |
| Ambient Temperature - Minimum | 14 Degrees F |
| Operating Pressure Differential Water - Minimum | 0 psi |
| Wattage | 16.1 W |
| Frequency | 60 Hz |
| Fluid Temperature - Maximum | 180°F |
| Operating Pressure Differential Light Oil - Minimum | 0 psi |
| Includes Coil | Yes |
| Includes Seal | Yes |
| Environmental Rating | Indoor, Outdoor |
| Coefficient of Volume (Cv) | 15 |
| Response Time | 1 sec |
| Thread Type | NPT |
| Operating Pressure Differential Light Oil - Maximum | 125 psi |
| Operating Pressure Differential Air/Inert Gas - Maximum | 150 psi |
| Operating Pressure Differential Steam - Maximum | Not Rated |
| NEMA Enclosure Rating | 1, 2, 3, 3S, 4, 4X |
| Operating Pressure Differential Water - Maximum | 125 psi |
| Operating Pressure Differential Hot Water - Maximum | Not Rated |
| Mounting Orientation | Vertical |
| Operating Pressure Differential Air/Inert Gas - Minimum | 0 psi |
| Valve Positions | 2-Position |
| Ambient Temperature - Maximum | 140 Degrees F |
