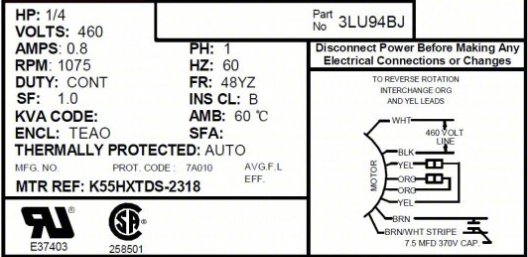

Redwood RW3LU94 Condenser Fan Motor Stud Mount, Totally Enclosed Air-Over, 1/4 HP, 1,075 Nameplate RPM, Auto

Condenser Fan Motor, Motor Design Permanent Split Capacitor, Phase Single, 1/4 HP, No. of Speeds 1, Voltage 460V AC, Motor Shaft Rotation CW/CCW, 48YZ Frame, Motor Enclosure Design Totally Enclosed Air-Over, Stud Motor Mounting Type, Motor Mounting Position All Angle, Shaft Dia. 1/2 in, Shaft Length 6 in, Motor Thermal Protection Auto, Max. Ambient Temp. 60 Degrees C, Nameplate RPM 1,075, HVAC/R, Condenser Fan, 60 Hz, Full Load Amps 0.8 A, Ins. Class B, Motor Service Factor 1

Motor Design	Permanent Split Capacitor
Phase	Single
HP	1/4
RPM Range	1,001-1,100
No. of Speeds	1
Voltage	460V AC
Motor Shaft Rotation	CW/CCW
Frame	48YZ
Motor Enclosure Design	Totally Enclosed Air-Over
Motor Mounting Type	Stud
Capacitor Required	2MDV6
Motor Sub Application	Condenser Fan
Mounting Stud Pattern	3 5/8 in x 3 5/8 in
Duty	Continuous
Nameplate RPM	1,075
Motor Mounting Position	All Angle
UPC	190735291269
Motor Service Factor	1
Full Load Amps	0.8 A
Motor Shaft Design	Double-Flat
Hz	60 Hz
Motor Bearings	Ball
Stud Quantity	4
Ins. Class	B
Features	Reversing Plug, Totally Enclosed Endshields with Removable Drain Plugs
Motor Application	HVAC/R
Voltage Compatibility	200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Max. Ambient Temp.	60 Degrees C
Motor Thermal Protection	Auto
Standards	CSA Certified (225293), UL Recognized (E47479)
Duty Cycle	Continuous
Mounting	Stud
