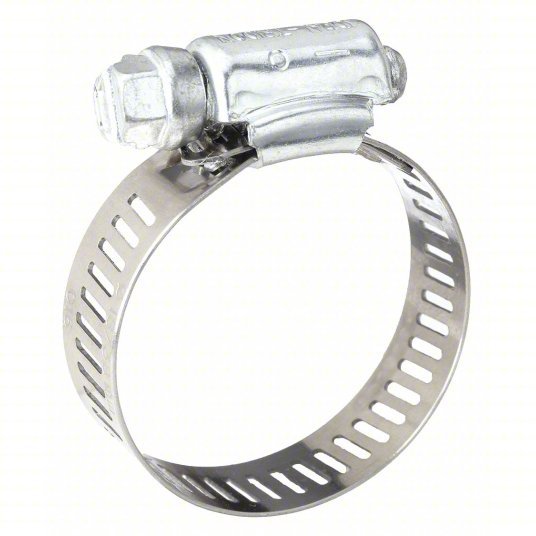

Redwood 5202070 Worm Gear Hose Clamp 301 Stainless Steel, Perforated Band, 5/16 in – 5/8 in Clamping Dia, 10 PK

Worm Gear Hose Clamp, Band Material Stainless Steel, Band Material Grade 301, Band Thickness 0.022 in, Band Type Perforated, Band Width 5/16 in, Clamp Maximum Inside Diameter 5/8 in, Clamp Minimum Inside Diameter 5/16 in, Fastener Housing Material Steel, For Maximum Outside Diameter 5/8 in, Grade General Purpose, Maximum Operating Temperature 500 Degrees F, SAE Number 4, Screw Material Steel, Screw Material Finish Zinc-Plated, Clamp Type Worm Gear Clamp, Drive Type Slotted Hex, Hex Size 1/4 in

Clamp Type	Worm Gear Clamp
Hose Clamp Band Material	201 Stainless Steel
Hose Clamp Housing Material	Plated Carbon Steel
Hose Clamp Product Group	Worm Gear Hose Clamp
Hose Clamp Screw Material	Plated Carbon Steel
SAE Number	4
Item	Worm Gear Hose Clamp
Hose Clamp Install Torque	10 in-lb
Band Slots	Rectangular
Standards	IATF16949, ISO 14001, ISO 9001
Screw Material	Steel
Grade	General Purpose
Screw Material Finish	Zinc-Plated
Band Material Grade	301
Fastener Housing Material	Steel
Maximum Operating Temperature	500 Degrees F
For Use On	Emission Control, Fuel Lines, Vacuum Hose
Drive Type	Slotted Hex
Installation Torque	10 to 15 in-lb
Band Type	Perforated
Series	Micro-Gear
System of Measurement	Inch
Band Material	Stainless Steel
