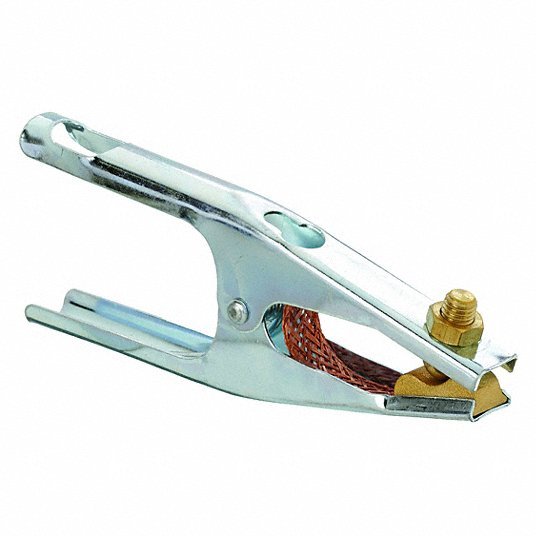

Redwood RW19N766 Ground Clamp 500 A, 1/0 AWG to 3/0 AWG, Steel

Ground Clamp, Maximum Current 500 A, Compatible Cable Gauge (Maximum) 3/0 AWG, Compatible Cable Gauge (Minimum) 1/0 AWG, Maximum Jaw Opening 2 in, Throat Depth 3 3/8 in, Clamp Body Material Steel, Cable Connection Type Braided Copper Shunt, Clamp Connection Material Brass, Clamp Height 4 in, Clamp Type Ground Clamp, Compatible with Surface Type Flat, Flat Plates, Pipe, Round, Features High-Tensile Spring to Grip Tight, Non-Conductive Yes, Overall Height 4 in, Overall Length 9.5 in

Material	Steel
Characteristics	Steel With Braided Copper Shunt
Type	Arc Welder, 3/0 Cable Connection
Amps	500 A
Includes	Bush
Features	High-Tensile Spring to Grip Tight
Non-Conductive	Yes
Maximum Jaw Opening	2 in
Compatible Cable Gauge (Maximum)	3/0 AWG
Clamp Body Material	Steel
Maximum Current	500 A
Screw Material	Zinc Plated Steel
Clamp Connection Material	Brass
Clamp Type	Ground Clamp
Compatible with Surface Type	Flat, Flat Plates, Pipe, Round
Compatible Cable Gauge (Minimum)	1/0 AWG
Cable Connection Type	Braided Copper Shunt
