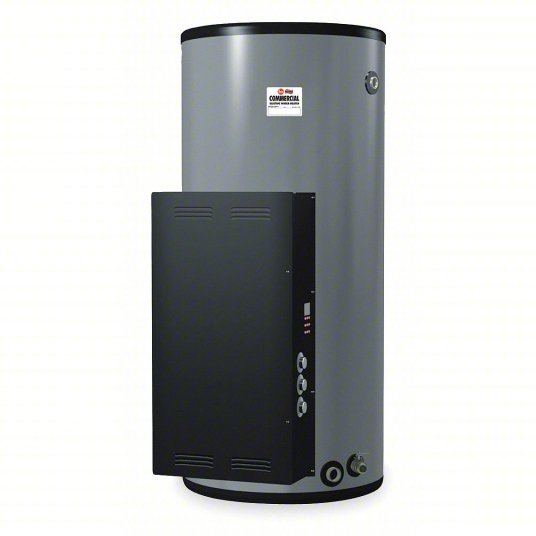

Rheem ES120-54-G Electric Water Heater 480V AC, 120 gal, 54,000 W, Single/Three Phase, 67.6 in Ht
Original price
$10,855.49
-
Original price
$10,855.49
Original price
$10,855.49
$10,855.49
-
$10,855.49
Current price
$10,855.49
Electric Water Heater, Operating Voltage 480V AC, Phase Single, Three, Equivalent BtuH 184,259 BtuH, First Hour Rating Not Applicable, Maximum Recovery Flow Rate 447 gph @ 50 Degrees F, Overall Height 67.6 in, Power Consumption 54,000 W, Tank Capacity 120 gal, Tank Diameter 30.25 in, Market Commercial, Number of Elements 9, Automatic Thermostat Yes, Cold Inlet Size 1 1/2 in, Cold Inlet Type NPT, Current 113 A, Element Material Stainless Steel, Height to Cold Inlet 4.8 in
| Commercial / Residential | Commercial |
| Water Heater Design | Whole House |
| Tank Capacity - Plumbing | 119.9 gal |
| Voltage - Water Heaters | 480 |
| Phase - Water Heaters | 1/3 |
| Total Watts | 54,000 W |
| Tank Capacity | 120 gal |
| Fuel Type | Electric |
| Recovery @ 120 F Rise | 186 gph |
| System of Measurement | Inch |
| Features | Heavy Duty; Long Life Tank Design; Automatic Temperature Control; 98% Thermal Efficiency; Minimal Standby Heat Loss |
| Temp. Range | 120 Degrees to 180 Degrees F |
| Residential / Commercial | Commercial |
| Vent Type | Standard |
| Compliance | UL Certified; UL Standard 1453; NC Code Compliant; DOE Test Procedures; ASHRAE Standard |
| Connection Type | NPT |
| Standards | AHRI Compliant, ASME, CSA Certified, LWH, UL EPH Listed, UL Listed |
| Number of Elements | 9 |
| Connection Location | Cold Side/Hot Top |
| Recovery @ 50 F Rise | 447 gph |
| Industry Type | Commercial |
| Water Connection | 1-1/2 in NPT |
| Recovery @ 140 F Rise | 160 gph |
| Item | Electric Water Heater |
| Phase | Single, Three |
| Recovery @ 100 F Rise | 223 gph |
| Application | Ferrous / Non-Ferrous Metal Over 1/8", S/S Tube, PVC, Cast Pipe and Nail Embedded Wood |
| Recovery @ 90 F Rise | 248.0 gph |
| Recovery @ 110 F Rise | 203 gph |
| Recovery @ 70 F Rise | 319 gph |
| Max. Pressure | 150 psi |
| Recovery @ 130 F Rise | 172 gph |
| Amps AC | 113/65 |
| Includes | Brass Drain Valve, Factory-Installed T&P Valve |
| Included Valves | Temperature and Pressure Relief |
| Water Connection Location | Side |
| Equivalent BtuH | 184,259 BtuH |
| Tank Outer Shell Finish | Porcelain Enamel |
| Recovery Rate @ Rise | 160 gph @ 140 Degrees F, 172 gph @ 130 Degrees F, 186 gph @ 120 Degrees F, 203 gph @ 110 Degrees F, 223 gph @ 100 Degrees F, 248 gph @ 90 Degrees F, 319 gph @ 70 Degrees F |
| Operating Voltage | 480V AC |
| Tank Lining Material | Vitreous Glass |
| Minimum Delivered Temperature | 120 Degrees F |
| Automatic Thermostat | Yes |
| Element Material | Stainless Steel |
| Thermal Efficiency | 98 % |
| Hot Outlet Type | NPT |
| Tank Outer Shell Material | Steel |
| Market | Commercial |
| Maximum Water Pressure | 150 psi |
| Maximum Recovery Flow Rate | 447 gph @ 50 Degrees F |
| Current | 113 A |
| Tank Insulation Material | Polyurethane |
| Power Consumption | 54,000 W |
| Thermostat Mounting | Surface |
| Cold Inlet Type | NPT |
| Maximum Delivered Temperature | 181 Degrees F |
